显示器
| 显示器尺寸 |
22 " |
| 对比度（动态） |
2000000:1 |
| HD 类型 |
Full HD |
| 响应时间 |
3 ms |
| 原机长宽比 |
16:9 |
| 显示器分辨率 |
1920 x 1080 pixels |
| 视角，水平 |
170 ° |
| 视角，垂直 |
160 ° |
| 像素 |
0.248 x 0.248 mm |
| 显示器亮度 |
250 cd/m² |
| 显示技术 |
LCD/TFT |
| HDCP |
N |
| 3D兼容性 |
N |
| 支持图形分辨率 |
1920 x 1080 (HD 1080) |
| 长宽比 |
16:9 |
| 显示器 |
LCD |
端口 & 界面
| 复合视频 |
2 |
| DVI端口 |
Y |
| DVI-D接口数量 |
1 |
| 音频输入 |
Y |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
人体工程学
| VESA 安装支架 |
Y |
| 高度调整 |
N |
| VESA 安装系统兼容界面 |
75 x 75, 100 x 100 mm |
重量和尺寸
| 深度 |
155 mm |
| 宽度 |
513 mm |
| 重量 |
6900 g |
| 高度 |
369 mm |
多媒体
| 集成电视调谐器 |
N |
| 内置摄像头 |
N |
| 内置扬声器 |
Y |
环境条件
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 储存相对湿度范围（H - H） |
5 - 95% |
| 运行湿度范围(H-H) |
10 - 90% |
认证标准
| 遵守工业标准 |
FCC, CB, CE, BSMI, RoHS, WEEE, REACH, 60601-1 3rd |
另外
| 产品色彩 |
White |
| 超级视频输入 |
1 |
| 能源效率等级 |
Unspecified |
| 运行温度范围（T - T） |
0 - 40 °C |

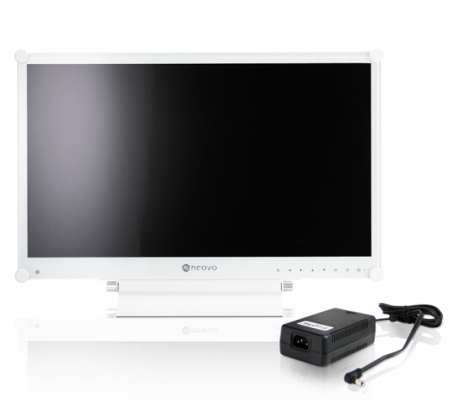

55.88 cm (22 ") TFT Full HD, 1920 x 1080, 3 ms, 250 cd/m2, 2000000 : 1, VGA, DVI-D, CVBS, S-Video, HDMI, Audio-In, VESA, 6.9 kg
Medical LED-Backlight panel, 60601-1 3rd Edition
- reproduces contrast, colours and details with an extraordinary reliability
- energy efficient, less than 0.5 W at stand-by mode
- integrated speakers
- Aluminium / Magnesium case
- disinfectable Glass front
- VESA mounting
The Neovo Baaske LCD XM system is ideal for use in the patient environment. This display from Neovo reproduces contrast, colours and details with an extraordinary reliability. Armed with EcoSmart Sensor the energy efficient Neovo Baaske LCD XM system run on less than 0.5 W at stand-by mode, a feature that ensures its performing nonstop service immaculately. The NeoV™ Optical Glass protects against scratches, impacts and other physical damage. On top of PIP and PBP, Smart Omni Viewer offers selectable aspect ratios and the option of 180° image rotation. Multiple video inputs (HDMI, DVI, VGA, CVBS, S-Video) make effortless system integration possible.
In combination with specially for the medicine designed power supply, this system offers all the presuppositional commitments for safe use in medical areas.
