端口 & 界面
| 3.5 mm 毫米输出端口 |
Y |
| 接口 |
DisplayPort |
| USB2.0端口的数量 |
5 |
| DC-IN插口 |
Y |
| VGA（D-SUB）输出端口 |
1 |
能量控制
| 功耗（一般操作） |
20 W |
| 功耗（待机） |
2.5 W |
| 功耗（最大） |
35 W |
| 电源类型 |
AC |
联网
| 无线局域网数据传输率 |
300 Mbit/s |
| 支持安全算法 |
AES, WPA2-CCMP, WPA2-PSK |
| 无线局域网类型 |
IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| 最高操作距离 |
3000 m |
| 频段 |
2.4 & 5 GHz |
产品特点
| 最大分辨率（视频图形阵列） |
3840 x 2160 pixels |
| Maximum frame rate |
30 fps |
| 用户数量 |
4 user(s) |
天线
| 天线类型 |
External |
| 天线增益水平（最大值） |
28 dBi |
| 天线数量 |
2 |
重量和尺寸
| 深度 |
276 mm |
| 宽度 |
260 mm |
| 重量 |
2600 g |
| 高度 |
181 mm |
环境条件
| 储存温度范围 (T-T) |
-20 - 60 °C |
| 储存相对湿度范围（H - H） |
0 - 90% |
| 运行湿度范围(H-H) |
0 - 85% |
系统要求
| 可支持的Mac操作系统 |
Mac OS 9.1, Mac OS 9.2, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| 可支持的Windows操作系统 |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| 可支持的手机操作系统 |
Android 5.0, Android 5.1, iOS 8.0, iOS 8.1, iOS 8.2, iOS 8.3, iOS 8.4, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
设计
| 液晶显示器指示灯 |
Y |
| 格式要素 |
Desktop |
| 认证 |
FCC/CE |
另外
| 产品色彩 |
Black, Silver |
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
5 - 40 °C |
UHD (3840x2160) 30fps, IEEE 802.11 a/g/n, DisplayPort, VGA , Ethernet LAN, USB, 3.5mm, Max 3000m, 20W, 2.6kg
ClickShare makes connecting to the meeting room’s video system a matter of clicking a button. This one click wonder not only helps the presenter get the presentation on-screen in a second, but it also allows the other people in the meeting to participate more actively. Sharing can be done via laptop PC or MAC, or via iOS and Android-powered mobile devices. The result is enhanced meeting efficiency and better decision-making.
More pixels, more content

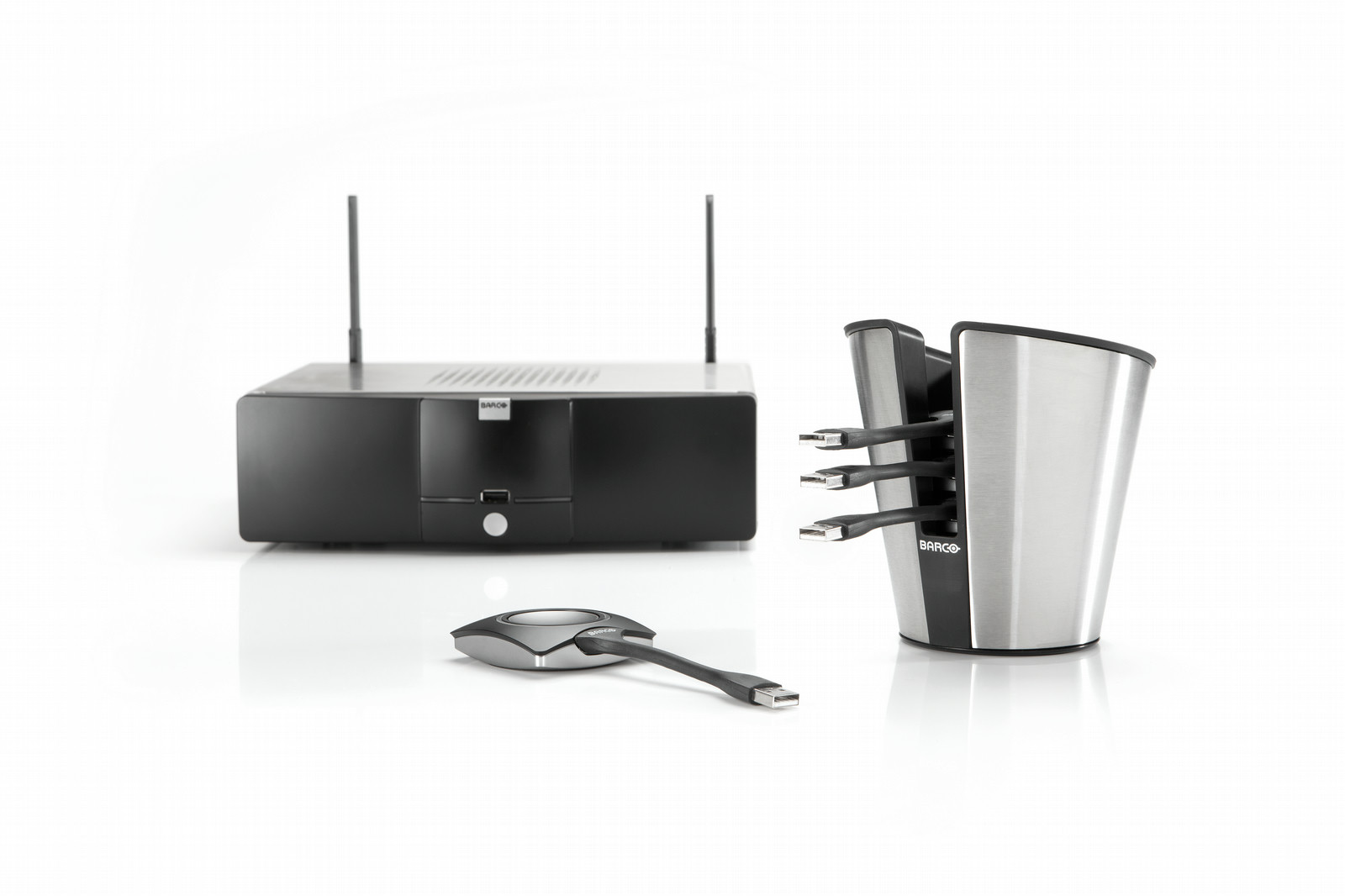

ClickShare wireless presentation and collaboration system boardroomIf you are driving two projectors, two screens, or Double HD canvas, the full-featured CSC-1 Base Unit is the right choice. This unit is fully compatible with the ClickShare Buttons and the apps for mobile devices, and was optimized for use in high-profile meeting rooms and boardrooms.
Optimized collaboration experience
By enabling to display the content of up to 4 users simultaneously, the CSC-1 Base Unit brings a complete Clickshare collaboration experience. 64 Buttons can be wirelessly connected to the Base Unit, ready to share. Furthermore, perfectly synchronized sound and video ensures that movie clips can be optimally enjoyed. And dynamic content from iPads, iPhones and Samsung Galaxy devices can be shown directly to the screen using the specialized apps. For other Android devices, you are restricted to showing static content.
