冷却
最大后部风扇 |
1 |
最大底部风扇 |
1 |
最大顶部风扇 |
2 |
最大侧风扇 |
1 |
支持的侧面风扇直径 |
120 mm |
最大前部风扇 |
2 |
支持的底部风扇直径 |
140, 120 mm |
前部风扇安装 |
1x 140 mm |
支持的最大散热器尺寸 |
240 mm |
Front radiator fan sizes supported |
140, 120 mm |
支持的后部风扇直径 |
120 mm |
安装的后部风扇 |
1x 120 mm |
设计
最大CPU散热器高度 |
170 mm |
最大显卡长度 |
400 mm |
材料厚度 |
0.7 mm |
格式要素 |
Desktop |
扩展插槽数 |
7 |
外部5.25“托架数量 |
3 |
最大PSU长度 |
290 mm |
侧窗 |
N |
类型 |
PC |
3.5" 托架数量 |
3 |
5.25" 托架数量 |
3 |
内部3.5英寸托架数量 |
3 |
2.5" 托架数量 |
3 |
端口 & 界面
USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |

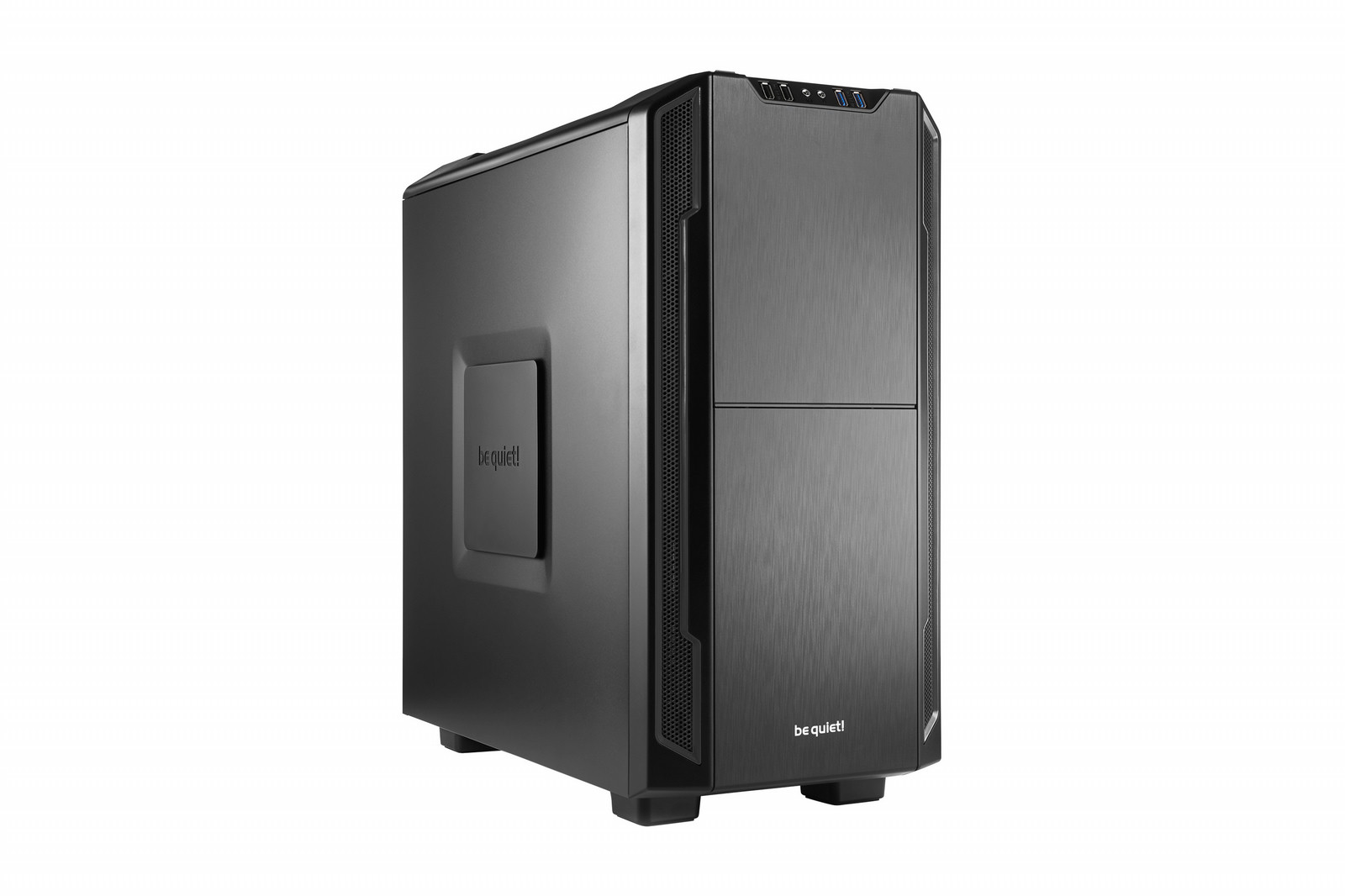

Silent Base 600, ATX, 0.7 mm, 3 x 5.25", 3 x 3.5", 3 x 2.5", 1 x 140 mm, 1 x 120 mm, USB 3.0, Black
<b>Unique Performance and Usability</b>
be quiet! Silent Base 600 offers the perfect symbiosis of noise prevention and cooling performance, a good usability and an
extensive capacity for high-end hardware.
<b>Highlights »</b>
- Outstanding performance thanks to an innovative construction that assures excellent cooling efficiency and a perfect air-circulation at well-known whisper-quiet operation
- Excellent usability with simplest mounting and tool-free fitting of drives, an intelligent and adaptable cable solution, and air intake filters that are easily accessed for cleaning
- Ample space and cutouts are provided for high-end components of today and tomorrow, including space for water cooling radiators
- Two pre-installed Pure Wings 2 fans feature nine airflow-optimized fan blades and are decoupled from the case to circulate air with a minimum of vibration and the quietest possible operation; 3-step fan controller included
- Side panel with adjustable vent that can be closed for silent operation, partially open for increased air intake or open with an
additional fan for higher cooling performance
- Professional cable management is supported with generous space for organizing cables, silicone rubber grommets, and carefully placed pass-throughs
- Product conception, design and quality control in Germany
- 3-years manufacturer’s warranty
<b>Silent Base 600 »</b>
The design team’s mission was based on the principle “form follows function”, and so every last detail in the Silent Base 600’s design has a functional purpose. It is truly a superior case ideal for high-end gaming gear and quiet systems.
