技术细节
| 风扇数量 |
2 fan(s) |
| 散热器 |
Y |
| 风扇 |
Y |
| 处理器插座 |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, Socket AM4, LGA 2011-v3 (Socket R), LGA 1151 (Socket H4), Socket FM2+, Socket FM1 |
| 风扇速度（最大） |
1600 RPM |
| 脉冲宽度调制 (PWM) 支持 |
Y |
| 风扇连接器 |
4-pin |
| 手动冷却型 |
Rifle |
| 最大气流 |
160 cfm |
| 最小气流 |
94.2 cfm |
| 风扇噪声水平（最低） |
16.1 dB |
| 风扇噪声水平（最高） |
37.3 dB |
| 水泵电机转速 |
2200 RPM |
重量和尺寸
| 风扇直径 |
140 mm |
| 风扇厚度 |
25 mm |
| 散热器深度 |
30 mm |
| 散热器高度 |
319 mm |
| 散热器宽度 |
144 mm |
能量控制
| 风扇电流 |
0.3 A |
| 风扇功耗 |
3.6 W |
| 风扇电压 |
12 V |

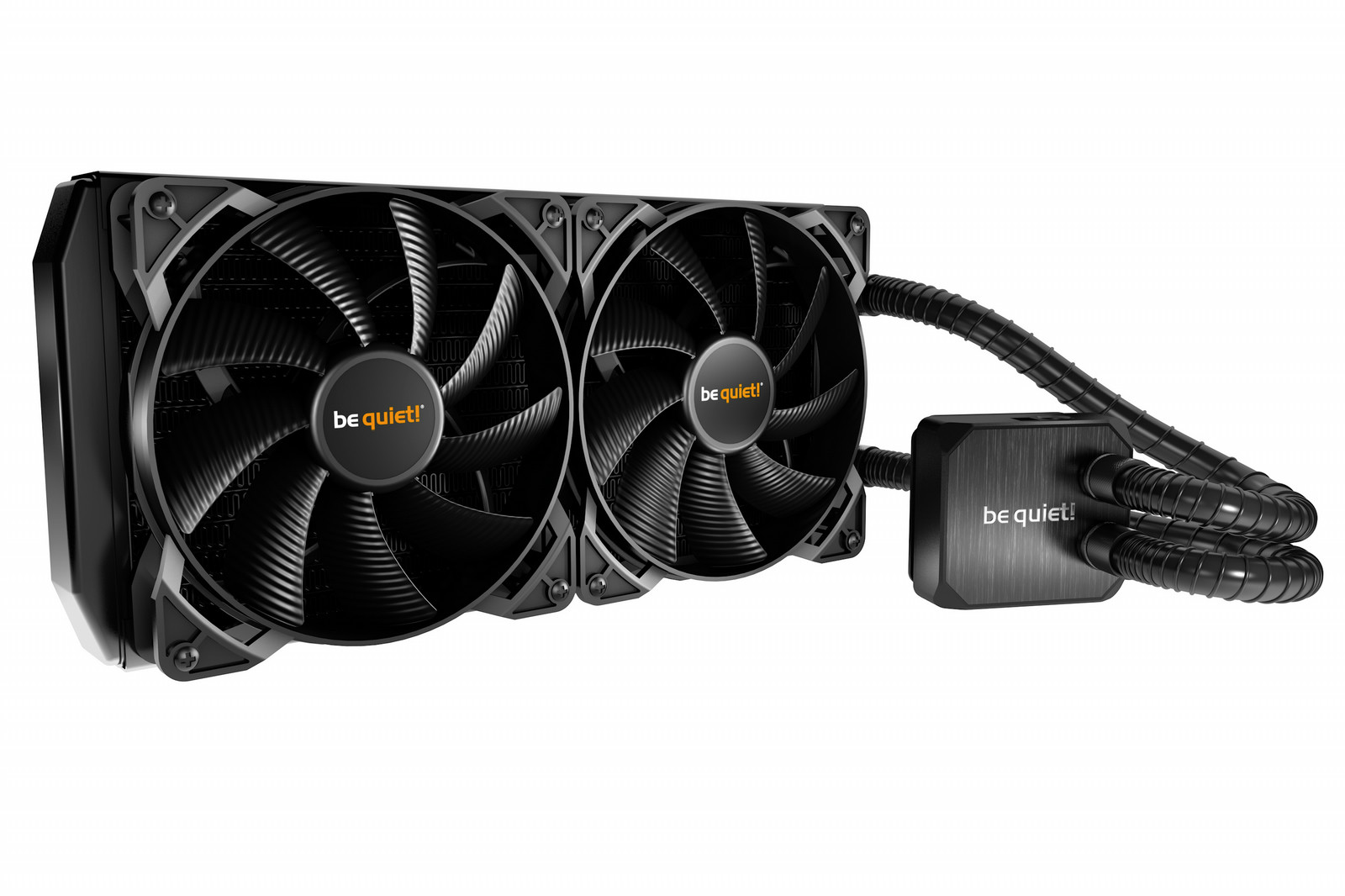

Silent Loop, 280mm, TDP 400W, 2200RPM
IDEAL APPLICATIONS
- Demanding PC systems
- Overclocked CPUs
- High-resolution gaming and multimedia PCs
- Superior quiet HTPCs
HIGHLIGHTS
- Innovative reverse-flow pump
- Two be quiet! Pure Wings 2 PWM fans
- Flexible tubes with useful bend protection
- Compatible with Intel ® and AMDTM sockets
Superior Cooling and Silence
Silent Loop brings the famous be quiet! whisper-silent technology to the world of All-in-One water cooling. Designed to make installation simple, Silent Loop includes everything needed in one package.
Highlights
- Innovative decoupled reverse-flow pump runs smoother, quieter and with less vibration than conventional pumps
- Full copper radiator for an impressive cooling performance
- Two Pure Wings 2 PWM fans provide quiet operation with high air pressure
- Customized fan speed thanks to PWM function
- Easy handling due to flexible bend-protection tubes and convenient mounting
- Full copper parts and a refill port extend the product’s life span
- Nickel-plated cold plate allows optimum use of heat-conducting metallic paste
- Compatible with Intel ® and AMDTM sockets
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
Silent Loop
No compromise is required when choosing to water-cool demanding systems and overclocked CPUs.
