端口 & 界面
| AUX 输入 |
Y |
| 麦克风/音频输入插孔 |
Y |
| XLR 音讯连接输出端口 |
8 |
音频
| 音频数字/模拟转换器 |
Y |
| 频道/通道 数量 |
8 |
| 数字声音处理 |
24 bit |
| 采样率 |
48 kHz |
| 声道串扰 (1kHz) |
-87 dB |
| 频率范围 |
10 - 24000 Hz |
输入
| 最大输入水平 |
48 V |
| 麦克风输入阻抗 |
2700 Ω |
| 输入阻抗 |
20000 Ω |

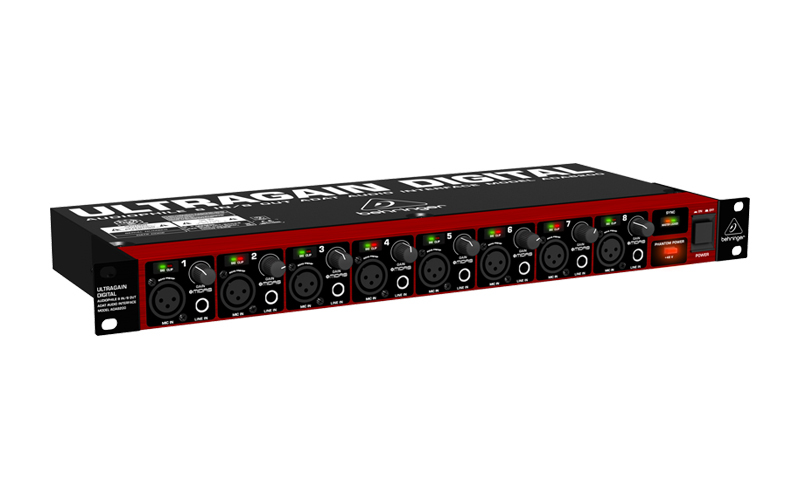

Audiophile 8 In/8 Out ADAT Audio Interface w/ MIDAS Mic Preamplifiers
Need to convert a digital multi-track signal to analog, or vice versa? The new BEHRINGER ULTRAGAIN DIGITAL ADA8200 is sublimely easy to operate, fits neatly into a single rack space, and thanks to its MIDAS-designed Mic Preamps and integrated A/D and D/A converters you’ll get optimal signal conversion—without the slightest hint of distortion or signal deterioration! The ULTRAGAIN ADA8200 is the professional’s edge.
<b>What's New?</b>
The ADA8200 builds on the proud legacy of our ADA8000, which is one of our all-time, best-selling products. Now, you’re probably thinking, “If they sell so many ADA8000s, then why are they changing them?” The short answer – we improved it, by upgrading to reference-class Cirrus Logic converters and MIDAS-designed Mic Preamps, making the ADA8200 the natural choice for musicians and audio engineers alike.
<b>The Technical Stuff</b>
Signal conversion in the ADA8200 takes place at either 44.1 or 48 kHz with 24-bit resolution. The ADAT inputs and outputs can be operated independently, as long as there is an identical wordclock signal. Frequency range is an ultra-wide 10 Hz - 24 kHz at a 48 kHz sampling rate.
<b>The Ins and Outs</b>
Connections are provided for balanced XLR and 1/4" TRS, as well as unbalanced 1/4" TS inputs. XLR line out connectors located on the rear panel provide either balanced or unbalanced connectivity. Digital I/O is handled via ADAT format TOSLINK optical sockets, which support up to 8 channels of data.
<b>Value</b>
You can trust all your digital ones and zeros to the ADA8200, at an ultra-affordable price that will amaze you. Order online or stop by your authorized BEHRINGER dealer today and expand your digital arsenal.
<b>Important Compatibility Information</b>
There is a known issue with the ADAT interface implementation of the MOTU 2408 audio interface that makes it incompatible with the ADA8000/ADA8200 under certain operating conditions. Users are advised to avoid the following configuration:
- The MOTU 2408 is connected to a MOTU PCI-424 card and operating in PCI Mode under computer control
- The ADA8000/ADA8200 SYNC option is set to SLAVE and the clock input is being supplied from the MOTU 2408
- The optical output from the ADA8000 ADAT interface is connected to an ADAT input on the MOTU 2408
