端口 & 界面
| AUX 输入 |
Y |
| 麦克风/音频输入插孔 |
Y |
| 监听输出端口 |
1 |
| MIDI输出 |
Y |
| 线路输入（RCA） |
2 |
| 唱机输入（RCA） |
2 |
音频
| 音频数字/模拟转换器 |
y |
| 频道/通道 数量 |
40 |
| 数字声音处理 |
24 bit |
| 频率范围 |
10 - 22000 Hz |

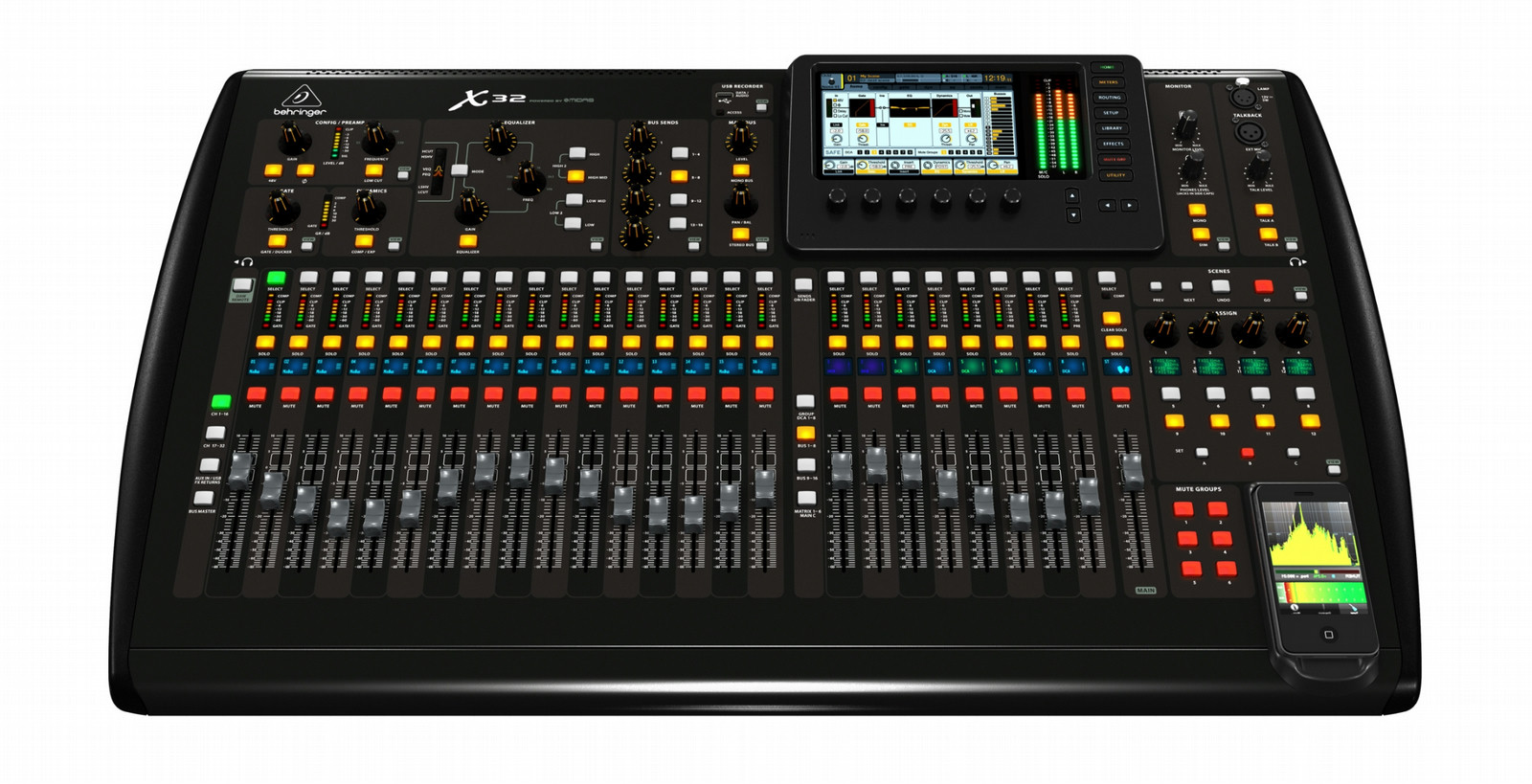

40-input channel, MIDAS x 32, XLR x 16, 17.78 cm (7 ") TFT LCD, 800 x 480, RCA x 4, Aux x 12, USB x 2
- 40-input channel, 25-bus digital mixing console for Studio and Live application
- 32 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
- 25 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
- 16 XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external mic
- Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
- 32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI* and Mackie Control*
- iPad* and iPhone* apps for professional remote operation available free of charge—no host PC required
- High-resolution 7" day-viewable Color TFT for easy viewing of workflow components and parameters
- Main LCR, 6 matrix buses and 16 mix buses each featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
- Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L* and PCM70*, EMT250* and Quantec QRS* etc.
- 40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency (0.8 msec)
- Powerful scene management for convenient handling of complex productions
- 48-channel Digital Snake ready*** via AES50 ports, featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
- USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
- Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
- Additional user-definable control section allows for on-the-fly adjustments of your favorite parameters
- ULTRANET connectivity for BEHRINGER's P-16 Personal Monitoring System*** plus AES/EBU stereo digital output and MIDI
- Networked remote control for show setups with on-screen software editor via Ethernet
- Built-in expansion port for audio interface cards or digital networking bridges
- Future firmware updates, incl. new FX “Plug Ins”, downloadable from behringer.com free of charge
