显示器
显示器尺寸 |
46 " |
可视尺寸,对角线 |
1168 mm |
长宽比 |
16:9 |
响应时间 |
6.5 ms |
画中画 |
Y |
对比度 |
4000:1 |
显示器分辨率 |
1920 x 1080 pixels |
视角,水平 |
178 ° |
视角,垂直 |
178 ° |
像素 |
0.53025 x 0.53025 mm |
显示器可视区域 HxV |
1018.08 x 572.67 mm |
显示器亮度 |
500 cd/m² |
Full HD |
Y |
3D兼容性 |
N |
支持图形分辨率 |
1920 x 1080 (HD 1080) |
LED背光源 |
Y |
显示类型 |
LED |
能量控制
功耗(节能) |
0.5 W |
功耗(一般操作) |
150 W |
功耗(待机) |
0.5 W |
交流电(AC)输入频率 |
50/60 Hz |
电源类型 |
AC |
端口 & 界面
包含电缆 |
AC, VGA |
复合视频 |
1 |
USB2.0端口的数量 |
1 |
分量视频(YPbPr/YCbCr)输入 |
1 |
DisplayPort 数量 |
1 |
HDMI端口数量 |
1 |
VGA(D-SUB)端口数量 |
2 |
性能
可支持的Linux操作系统 |
Y |
扬声器数量 |
2 |
同步接触点(Windows7) |
6 |
即插即用 |
Y |
RMS的额定功率 |
24 W |
HDCP |
Y |
可支持的Mac操作系统 |
Y |
内置扬声器 |
Y |
可支持的Windows操作系统 |
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
人体工程学
支持装配位置 |
Horizontal |
VESA 安装系统兼容界面 |
400 x 200 mm |
墙壁支架 |
Y |
重量和尺寸
重量(含底座) |
32500 g |
重量 |
28000 g |
其他功能
最大模拟分辨率 |
4096 x 4096 pixels |
包括产品数量 |
1 pc(s) |
固有分辨率 |
1920 x 1080 pixels |
另外
显示器的颜色数量 |
1.073 billion colours |
产品色彩 |
Black |
显示器对角线(公制) |
116.8 cm |
超级视频输入 |
1 |
RS-232接口 |
2 |
以太网路(RJ-45)连接接口数量 |
1 |
运行温度范围(T - T) |
-20 - 60 °C |

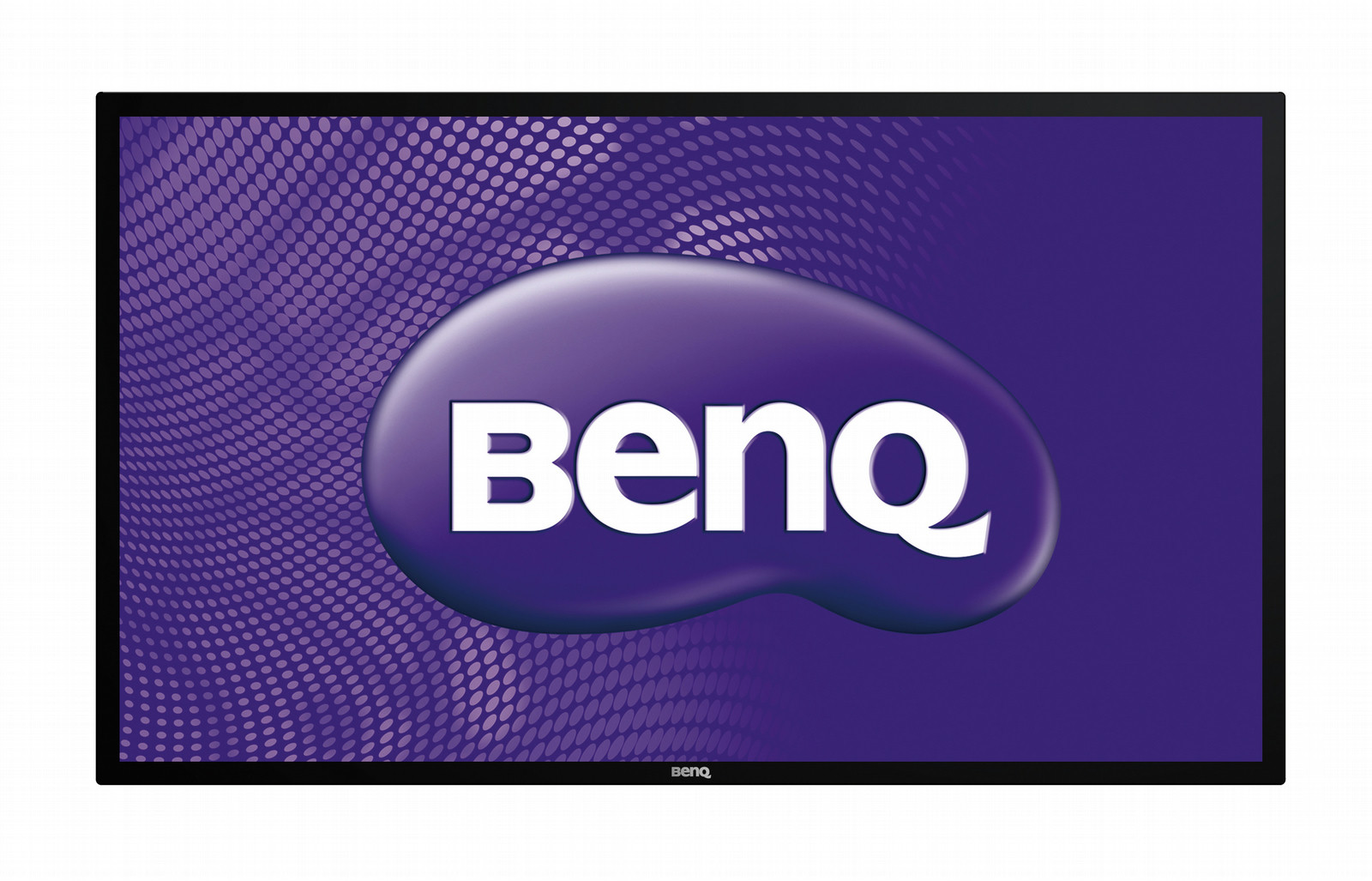

116.84 cm (46 ") PID E-LED, FHD 1920x1080 (16:9), 500cd/m², 6.5ms, 1073.7M, 2x12W RMS, HDMI, VGA, DVI, S-Video, DP, Composite, Component, RJ-45, RS232, 150W, 28kg
6-point Multi-Touch Display
Based on the infrared (IR) technology, the IL Series offers the highest number of touch points in the current digital signage market. The advanced design eliminates most “dead zones” and boosts pointing precision significantly, while the sensor package is now dust-proof and more reliable in portrait mode comparing to competing products.
MDA
The MDA (Multiple Display Administrator) application controls up to 98 displays simultaneously through the local network or serial port; it also monitors the health of displays and coordinates a sequential startup to prevent power surges.
Optimized for Portrait Mode
BenQ puts extra attention on scenarios in which portrait mode communicates better. The PID panel employs a structure featuring more solid fixing points on all edges to prevent “Mura” image distortion common on vertically positioned consumer displays.
DisplayPort
DisplayPort is a new standard for digital audio/video transmission. With the whopping 10.8Gbps bandwidth, the DisplayPort keeps your contents attractive, distortion-free in longer distances than conventional DVI and HDMI.
RS232 / LAN Control
BenQ IL Series supports remote administration via the built-in RJ45 Ethernet or the RS232 serial interface. Routine tasks such as OSD settings and firmware upgrades can be performed on the control server to the daisy-chained displays.
Anti-Image Retention
In commercial environments where images would stay for hours, image retention becomes a problem on consumer displays. PID panels designed for digital signage prevents the burned-in effect even after an extended period of usage.
24 / 7 Operation
The IL Series has an amazing average life of 50,000 hours – enough for years of non-stop service. With the reliable industrial-class performance, sturdy build and touch functions, the IL Series is in fact more versatile and economic then consumer models.
Ambient Light Sensor
A sensor automatically adjusts screen brightness according to the lighting condition of the surrounding environment. Since the power usage adapts intelligently with the ambient light, the display can reduce energy consumption by 40% to 50%.
PiP / PbP
The PiP/PbP feature displays contents from two independent video sources simultaneously for more convenience and flexibility. The PiP mode allows the sub picture to be resized or relocated for the best presentation.
Scheduling Management
The feature enables users to designate up to seven sets of on/off time for IL Series displays down to individual video input sources. This not only eliminates the need to switch displays on/off manually, but also cuts power bills with precise agendas.
Analog Daisy Chain
Analog Daisy Chaining is the easiest way to build a video wall. You can simply connect up to 9 displays through VGA cables without using splitters; the screens can show a mirrored image, or form a 3x3 configuration for an enlarged viewing area.
10-bit PID Panel
The panel is capable of displaying 10-bit levels for each primary color, that’s 1073.7-million colors in total. This helps producing smooth, rich images with no visible color banding for extremely vivid and effective contents.
