处理器
处理器频率 |
700 MHz |
图形适配器随机存取存储器数字/模拟转换器 |
400 MHz |
流处理器 |
128 |
着色器时钟 |
1728 MHz |
性能
填补率 |
44.8 billion texels/sec |
DirectX版本 |
10 |
OpenGL版本 |
2.0 |
NVIDIA 3D Vision |
Y |
最高着色模型版本 |
4.0 |
HDCP |
Y |
内存参数
图形适配器内存类型 |
GDDR3 |
内存带宽(最大) |
62.1 GB/s |
数据宽度 |
256 bit |
端口 & 界面
TV输出 |
Y |
接口类型 |
PCI Express 2.0 |
DVI-I接口数量 |
2 |
系统要求
最小硬盘空间 |
50 MB |
最低处理器 |
Intel Core2 Extreme X6800 |
另外
图形处理器 |
GeForce 8800 GTS |
双dvi(互应式数字视频) |
Y |
BFGE88512GTSOC2WCE, GDDR3, 512 MB, 700MHz, HDCP

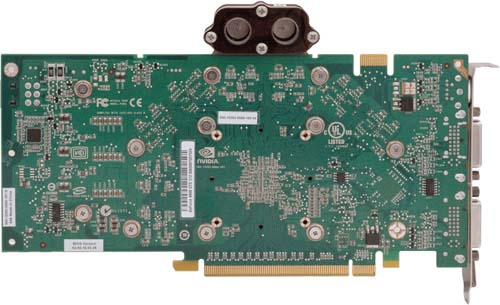

BFG NVIDIA GeForce 8800 GTS OC2 WC 512MB PCIe with ThermoIntelligence
Featuring the new ThermoIntelligence® custom copper water block co-developed by BFG and Danger Den, the BFG NVIDIA® GeForce 8800 GTS OC2 512MB Water Cooled Edition graphics card offers exceptional thermal performance in a single slot design which frees up valuable space for other add-in cards. This water block replaces the standard double slot 8800 GTS fansink for those who currently own or are purchasing a PC water cooling system.
Each card will be hand-built by a trained BFG technician with Arctic Silver® thermal compound and includes 1/2”, 3/8” and 1/4” fittings (barbs) allowing for seamless integration into most water cooling system loops. The BFG NVIDIA GeForce 8800 GTS OC2 512MB Water Cooled Edition graphics card also sports 128 stream processors, each individually clocked at a mind blowing 1.728GHz, and an impressive 512MB frame buffer with 256-bit interface which combined provides best-in-class performance. BFG Tech is proud to offer their True Lifetime Warranty and 24/7 Technical Support with this graphics card.
ThermoIntelligence Cooling Solution
Custom single slot ThermoIntelligence copper water block co-developed with Danger Den™ lowers temperatures by up to 30°C.
Built for Microsoft® Windows Vista™
NVIDIA's fourth-generation GPU architecture built for Windows Vista gives users the best possible experience with the Windows Aero 3D graphical user interface, included in the new operating system (OS) from Microsoft.
Full Microsoft DirectX 10 Support
World's first DirectX 10 GPU with full Shader Model 4.0 support delivers unparalleled levels of graphics realism and film-quality effects.
NVIDIA SLI™ Technology1
Delivers up to 2x the performance of a single graphics card configuration for unequaled gaming experiences by allowing two graphics cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI dramatically scales performance on today's hottest games.
NVIDIA unified architecture
Fully unified shader core dynamically allocates processing power to geometry, vertex, physics, or pixel shading operations, delivering up to 2x the gaming performance of prior generation GPUs.
GigaThread™ Technology
Massively multi-threaded architecture supports thousands of independent, simultaneous threads, providing extreme processing efficiency in advanced, next generation shader programs.
NVIDIA Lumenex™ Engine
Delivers stunning image quality and floating point accuracy with ultra-fast frame rates.
NVIDIA Quantum Effects™ Technology
Advanced shader processors architected for physics computation enable a new level of physics effects to be simulated and rendered on the GPU-all the while freeing the CPU to run the game engine and AI.
NVIDIA ForceWare® Unified Driver Architecture (UDA)
Delivers a proven record of compatibility, reliability, and stability with the widest range of games and applications. ForceWare provides the best out-of-box experience for every user and delivers continuous performance and feature updates over the life of NVIDIA GeForce GPUs.
OpenGL® 2.0 Optimizations and Support
Ensures top-notch compatibility and performance for OpenGL applications.
NVIDIA nView® Multi-Display Technology
Advanced technology provides the ultimate in viewing flexibility and control for multiple monitors.
NVIDIA PureVideo HD Technology²
The combination of high-definition video decode acceleration and post-processing that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for movies and video.
HDCP Capable³
Designed to meet the output protection management (HDCP) and security specifications of the Blu-ray Disc and HD DVD formats, allowing the playback of encrypted movie content on PCs when connected to HDCP-compliant displays.
PCI Express Support
Designed to run perfectly with the PCI Express bus architecture, which doubles the bandwidth of AGP 8X to deliver over 4 GB/sec. in both upstream and downstream data transfers.
1 - NVIDIA SLI certified versions of GeForce PCI Express GPUs only.
2 - Feature requires supported video software. Features may vary by product.
³ - Requires other HDCP-compatible components.
