安全
| 防火墙 |
NAT, SPI, DMZ |
| 防火墙 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
| IP地址过滤 |
Y |
其他功能
| 最大数据传输率 |
0.054 Gbit/s |
| 非操作相对湿度(非冷凝) |
20 - 95% |
| xDSL connection |
Y |
| 带宽（第一） |
2.4 GHz |
| 机架安装 |
N |
| 网路功能 |
802.11g, 802.11b |
| 输入电压 |
12 V |
| 数据传输速度 |
54 Mbit/s |
| 输入电流 |
1.2 A |
| USB版本 |
2.0 |
| USB 端口数量 |
1 |
| 频率范围 |
2.4GHz - 2.484GHz |
管理功能
| 通用即插即用（UPnP） |
Y |
| 支持服务质量（QoS） |
Y |
| 网上管理 |
Y |
协议
| DMZ支持 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 支持网络协议 |
PPTP, PPPoE |
无线局域网的特点
| Wi-Fi标准 |
IEEE 802.11g |
| 无线局域网类型 |
IEEE 802.11g, IEEE 802.11b |
以太网LAN特性
| 以太网LAN接口类型 |
Fast Ethernet |
| 以太网的数据传输率 |
10, 100 Mbit/s |
WAN 广域网连接
| 3G/4G USB 调制解调器的兼容性 |
Y |
| DSL WAN |
Y |
天线
| 天线类型 |
External |
| 天线增益水平（最大值） |
2 dBi |
| 天线数量 |
1 |
另外
| 以太网连接器 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |

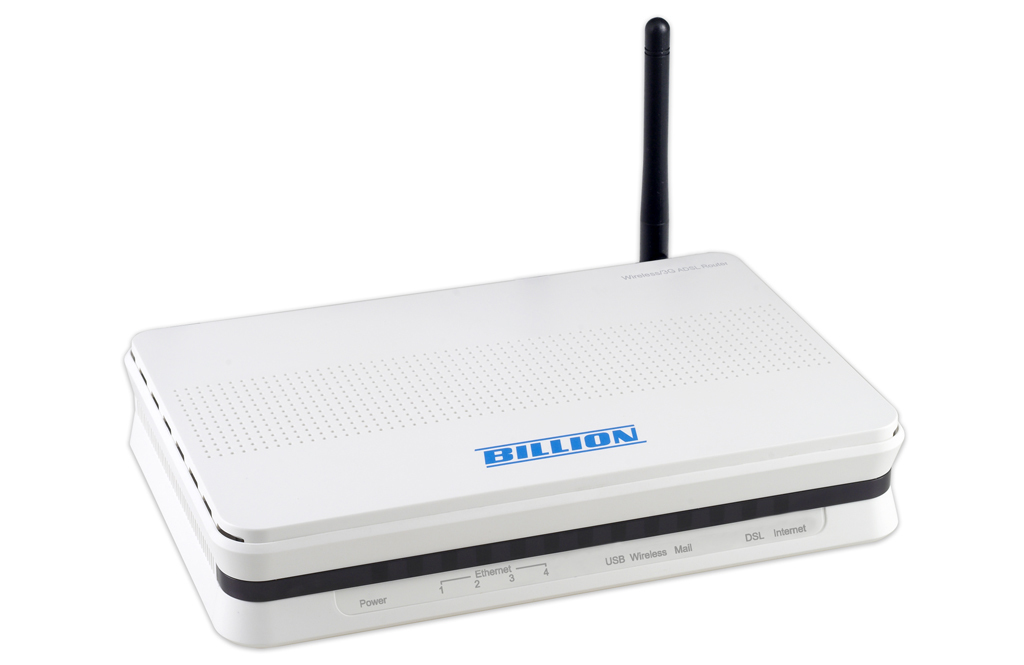

ADSL/3G, 1 x WAN, 1 x USB, 4 x LAN, WLAN 802.11b/g
Create your own portable hotspot!
Enjoy the freedom of secure, high-speed Internet connectivity at the home, office, or while on the road with Billion's compact BiPAC 7402GXL dual-interface ADSL2+/3G firewall router. Wired connections can benefit from the ADSL2+ standard’s flexibility, offering download speeds of up to 24Mbps using a standard telephone connection, while wireless connections profit from download speeds up to 14.4Mbps *(Note 3) delivered via 3G/HSDPA, EDGE, UMTS or GPRS networks.
The BiPAC 7402GXL is equipped with a built-in 4-port full-duplex 10/100 Switch to allow easy connecting of other wired-Ethernet devices. Directly connect up to four PCs, or additional hubs or switches to create a larger network as needed. Use the integrated Router function and a USB port to share a blistering ADSL2+ or 3G-based Internet connection (requires an additional 3G USB modem), with automatic fail-over to ensure an always-on Internet connection in the event that one of your Internet services fails.
The BiPAC 7402GXL can also encode all 802.11g wireless LAN transmissions with either WEP or WPA encryption to ensure that your data is protected, and boasts a DHCP Server and a powerful SPI firewall to protect against intruders and most known Internet attacks. Secure WLAN setup is simplified by the web browser-based configuration for easy access to the Internet wherever a 3G connection is available - whether you're seated at your desk or taking a cross-country train trip.
Communication Flexibility via 3G/HSDPA using the USB port
The BiPAC 7402GXL allows you to connect a 3G/HSDPA USB modem to its built-in USB port, enabling you to use a 3G/HSDPA, UMTS, EDGE, GPRS, or GSM Internet connection, makes downstream rates of up to 14.4Mbps *(Note 3) possible. With the increasing popularity of the 3G standard, communication via the BiPAC 7402GXL is becoming more convenient and widely available -allowing you to watch movies, download music on the road, or access e-mail no matter where you are. You can even share your Internet connection with others, no matter if you're in a meeting, or speeding across the country on a train.
Always Online
The BiPAC 7402GXL is compliant with worldwide ADSL standards, and supports download rates of up to 12/24Mbps using ADSL2/2+, 8Mbps using ADSL and an upload rate of up to 1Mbps. Using this technology you'll be able to enjoy high-speed ADSL and broadband multimedia applications such as interactive gaming, video streaming and real-time audio. The integrated Annex M standard supports ADSL2/2+ for higher upload speeds by doubling the upload data rate. Planned support for auto-failover means that you'll be assured of a constant Internet connection – in case your ADSL line fails, the BiPAC 7402GXL will connect via 3G to deliver uninterrupted connectivity.
Double-layer Protection
An integrated 802.11g Wireless Access Point offers quick yet easy access with data encryption for added security. Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) support ensures high-level data protection and WLAN access control. In addition, rich firewall security features such as SPI, DoS attack prevention and URL content filtering are integrated to provide unparalleled protection for Internet access. Enjoy the benefits of added security by simply pressing the Wi-Fi Protected Setup button to quickly and easily set up secure wireless communication. If your network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows you to expand the wireless network without the need for using any wires.
