安全
| 防火墙 |
NAT |
| 防火墙 |
Y |
| 网页(URL)过滤 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
以太网LAN特性
| 布线技术 |
10/100/1000Base-T(X) |
| 以太网LAN接口类型 |
Gigabit Ethernet |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
管理功能
| 通用即插即用（UPnP） |
Y |
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
| 网上管理 |
Y |
无线局域网的特点
| Wi-Fi 频段 |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi标准 |
IEEE 802.11n |
| WLAN的数据传输率（最大值） |
600 Mbit/s |
| 无线局域网类型 |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
ADSL的特点
| ADSL说明书 |
ANSI T1.413 2, ITU G.992.1, ITU G.992.2, ITU G.994.1, ITU G.992.3, ITU G.992.5, ITU G.992.3 Annex M, ITU G.992.5 Annex M |
| ADSL2 + |
Y |
WAN 广域网连接
| 广域以太网 |
Y |
| 3G/4G USB 调制解调器的兼容性 |
Y |
| DSL WAN |
Y |
其他功能
| Mobile network connection |
N |
| xDSL connection |
Y |
| 带宽（第二） |
5 GHz |
| 带宽（第一） |
2.4 GHz |
| 机架安装 |
N |
| 输入电流 |
1.6 A |
| 频段 |
2.4 & 5 GHz |
| USB版本 |
2.0 |
| USB 端口数量 |
1 |
联网
| 管理协议 |
EZSO, SNMP v1, v2, MIB-I, MIB-II |
天线
| 天线类型 |
External |
| 天线数量 |
2 |
| 可拆式天线（S） |
N |
协议
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 支持网络协议 |
IPv4, IPv6, NAT, DHCPv6, DDNS, DMZ, SNTP, DNS relay, IGMP proxy, IGMP, VLAN, ATM, PPPoE |
另外
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |

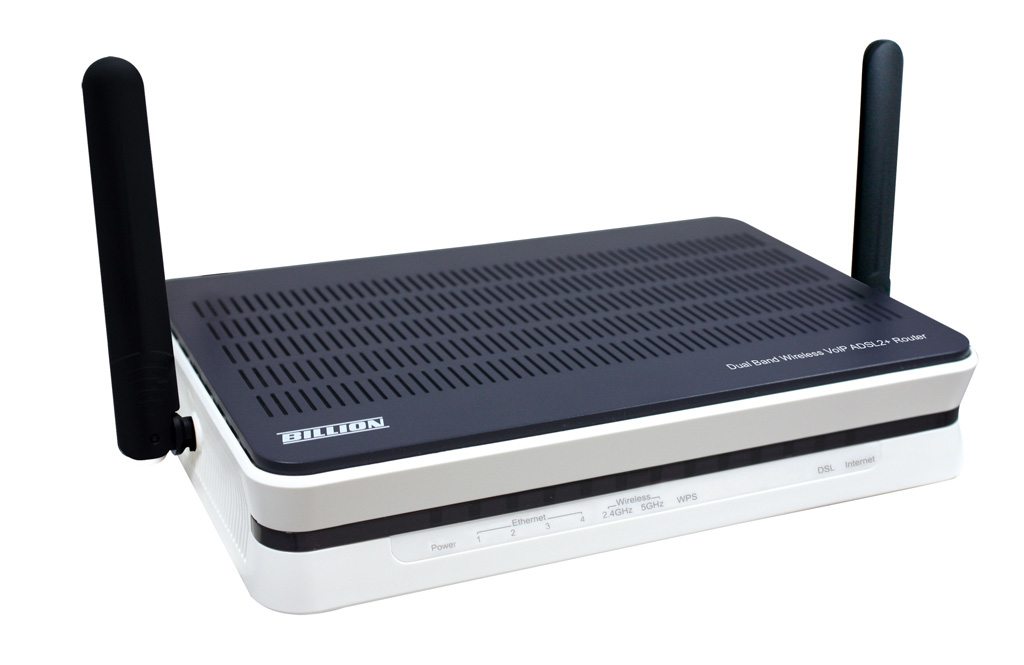

BiPAC 7800DXL, ADSL2+, NAT Firewall, IEEE 802.11a/b/g/n Dual-Band, USB, Gigabit Ethernet
The Billion BiPAC 7800DXL is a fibre-ready triple-WAN ADSL2+ dual-band modem router, an all-in-one advanced device including concurrent dual-band Wireless-N 600Mbps (2.4GHz and 5GHz), Gigabit Ethernet, 3G/4G LTE, and NAS (Network Attached Storage) in one unit. As well as being IPv6-capable, the BiPAC 7800DXL ADSL2+ router supports superfast fibre connections via dual-WAN connectivity through a Gigabit Ethernet WAN port. It also has a USB port, allowing the device to act as a print server as well as a NAS (Network Attached Storage) device with DLNA (Digital Living Network Alliance) and FTP (File Transfer Protocol) access. Moreover, the USB port can host a 3G/4G LTE modem connecting to the 3G/4G LTE network for Internet access. With an array of advanced features, the Billion BiPAC 7800DXL delivers a future-proof solution for ADSL2+ connections, superfast FTTC and ultra-speed FTTH (Fibre-To-The-Home) network deployment and services.
Key Features
- Triple-WAN ports for 3G/4G LTE, ADSL2+, Gigabit Ethernet WAN (EWAN) for broadband connectivity.
- Simultaneous dual-band Wireless-N 600Mbps (2.4GHz and 5GHz).
- Gigabit WAN and LAN.
- Fibre (FTTC/FTTP/FTTH) ready with high WAN throughput.
- IPv6 ready (IPv4/IPv6 dual stacks).
- USB port for print server, NAS, DLNA media server, and 3G/4G LTE USB modem.
- SNR adjustments to achieve highest sync speeds.
- Monitoring of individual LAN ports.
- QoS for traffic prioritization and bandwidth management.
- Broadcom chipset for better stability.
- Multiple wireless SSIDs with wireless guest access and client isolation.
- Supports IPTV applications.
- NBN (National Broadband Network) ready.
- Supports port-based Virtual LAN (VLAN).
- Available Syslog.
- Dynamic Domain Name System (DDNS).
- Ideal for SOHO and home users.
Maximum Performance Dual-band Router
Featured with simultaneous dual-band technology, the BiPAC 7800DXL can run both 2.4GHz and 5GHz frequency bands at the same time, offering ultra-fast wireless speeds of up to 600Mbps and multiple SSIDs on both bands. The BiPAC 7800DXL, by adopting this state-of-the-art technology, allows for multiple-demand applications, such as streaming HD videos and multiplayer gaming simultaneously. With an integrated 802.11n Wireless Access Point, the router delivers up to 6 times the speed of an 802.11a/b/g network device. It supports a data rate of up to 600Mbps (2.4GHz and 5GHz) and is also compatible with 802.11a/b/g equipment. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access control over wireless LAN. The router also supports the Wi-Fi Protected Setup (WPS) standard, allowing users to establish a secure wireless network by simply pushing a button. If your network requires wider coverage, the built-in Wireless Distribution System (WDS) repeater function allows you to expand your wireless network without the need for any external wires or cables.
3G/4G Mobility and Always-On Connectivity
With the BiPAC 7800DXL you can connect a 3G/4G LTE USB modem to its built-in USB port, allowing you to watch movies, download music or access e-mail no matter where you may be. You can even share your Internet connection with others, when away on business, at a show, or wherever there is mobile signal but no fixed line access. The auto fail-over feature ensures maximum connectivity and minimum interruption by quickly and smoothly connecting to a 3G/4G LTE network in the event that your ADSL/fibre/cable line fails. The BiPAC 7800DXL will then automatically reconnect to the ADSL/fibre/cable connection when it's restored, reducing connection costs. These features are perfect for office situations where a constant and uninterrupted connection is critical.
Experience Gigabit
The BiPAC 7800DXL has four Gigabit LAN ports and the fourth port can be configured as a WAN port if required. This EWAN offers another broadband connectivity option for connecting to a cable, VDSL, fibre or second ADSL modem. The BiPAC 7800DXL again offers users convenience and optimal network performance with data rates reaching up to 1Gbps.
Pathway to the Future
The BiPAC 7800DXL fully supports IPv6 (Internet Protocol Version 6), launched as the current IPv4 range is filling up, and IPv6 is gradually becoming the indispensable addressing system for savvy cloud computing users. Dual stack means the router is capable of running IPv4 and IPv6 in parallel during the transition period. With Billion IPv6 enabled devices, three major transition mechanisms such as Dual-Stack, Dual-Stack Lite, and 6RD (IPv6 rapid deployment) are supported to be adapted easily into service provider’s IPv4/IPv6 network.
