Elmeg Module 4 DSP
- 4 voice channels for media crossing
- Codecs: G.711, G.723, G.726, G.729
<b>4 DSP extension for modular elmeg ICT systems</b>

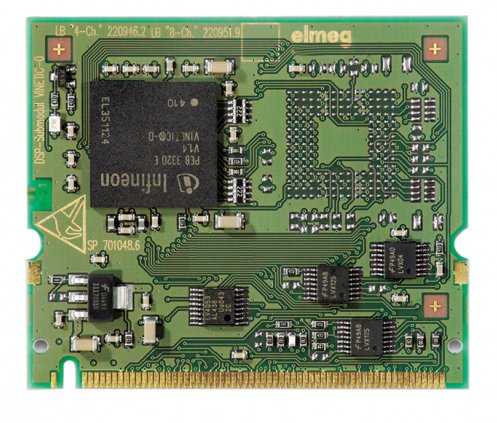

Module M 4 DSP provides 4 DSP channels for modular elmeg ICT systems (T444, T484, ICT, hybird 300 / 600) and ensures the media transfer to IP telephones or to SIP providers.
<b>Product description</b>
To provide optimum voice quality with minimum bandwidths, the standard voice codecs G.711, G.723.1, G.726, and G.729a/b are supported.
<b>In elmeg ICT systems</b>
With the combination of elmeg ICT PBX, VoIP-VPN Gateway, and up to two extension modules M 4 DSP is the ICT system converted to a complete switched network-to-IP gateway. This permits the transition of IP voice data into the traditional voice network and vice versa.
<b>In elmeg T444 / T484</b>
The elmeg T444 / T484 can be directly connected with SIP providers using one M 4 DSP module.
<b>In elmeg hybird 300 / 600 systems</b>
With respect to media transfer, i.e. the connection from "traditional" technology to IP telephones or to SIP providers, the elmeg hybird 300 / 600 can be upgraded if required by a further 2 powerful DSP modules (special module slots) that provide parallel usable media transfers.
