无线局域网的特点
| 无线局域网类型 |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Wi-Fi标准 |
IEEE 802.11n |
其他功能
| 机架安装 |
Y |
| 带宽（第一） |
2.4 GHz |
| 格式要素 |
1U |
| xDSL connection |
N |
| 带宽（第二） |
5 GHz |
| Mobile network connection |
Y |
以太网LAN特性
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 以太网LAN接口类型 |
Fast Ethernet |
移动网络
| 4G |
Y |
| 3G |
Y |
| 2G标准 |
GPRS |
| 3G标准 |
UMTS, HSPA |
| 支持的UMTS频段 |
2600, 2100, 1900, 1800, 900, 850, 800 MHz |
另外
| 以太网路(RJ-45)连接接口数量 |
4 |
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
- 4G/3G module for Internet connecticity
- WLAN module as Access Point or as WLAN client useable
- WLAN HotSpot for bus passengers
- GPS for location analysis and for action triggering
- Up to 30 simultaneous VPN tunnels
- Extended temperature range for the operation in vehicles
- E1 automotive approval

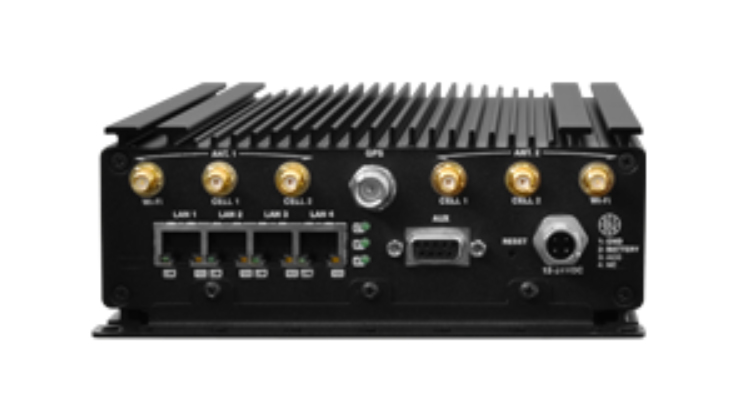

Rugged LTE router for broadband applications in vehicles
Rugged 4G router certified for use in vehicles. Integrated wireless LAN provides internet access for passengers. GPS positioning allows automatic activation of client mode in the bus terminal, for instance for accessing passenger data.
Moving vehicles represents a technical challenge for data transmission due to the electromagnetic shielding caused by the vehicle's cabin. Additional technical issues include electromagnetic interference, vibrations, and extreme temperature fluctuations.
<b>Rugged</b>
bintec RV series automotive routers are robust devices designed for unattended use in vehicles such as buses, emergency medical vehicles, police cars, and trucks. They provide the internet connectivity required for IP-based video surveillance systems, telemetry applications, vehicle tracking, wireless LAN connections that provide internet access to passengers, and advertisements displayed on digital signage.
<b>Flexible</b>
The bintec RV series combines flexible connectivity options (LTE, UMTS, wireless LAN, and more) with a broad range of software features such as the integrated IPSec functionality and the web-based graphical configuration interface and its wizards. The integrated 4G modem supports both LTE with 100 Mbps downloads and up to 50 Mbps uploads as well as UMTS (3G+) and HSPA+ for download speeds of up to 42.2 Mbps and 5.76 Mbps for uploads. Operators can connect IP-based surveillance cameras and onboard computers to the device via the integrated four port Ethernet switch.
<b>Secure</b>
bintec RV series routers provide an unparalleled range of IPSec features. All bintec RV series routers ship with 5 hardware-accelerated IPSec tunnels that can be upgraded to as many as 30 if required. Thanks to the comprehensive multicast implementation, bintec RV routers are ideal for multimedia and streaming applications such as video surveillance.
