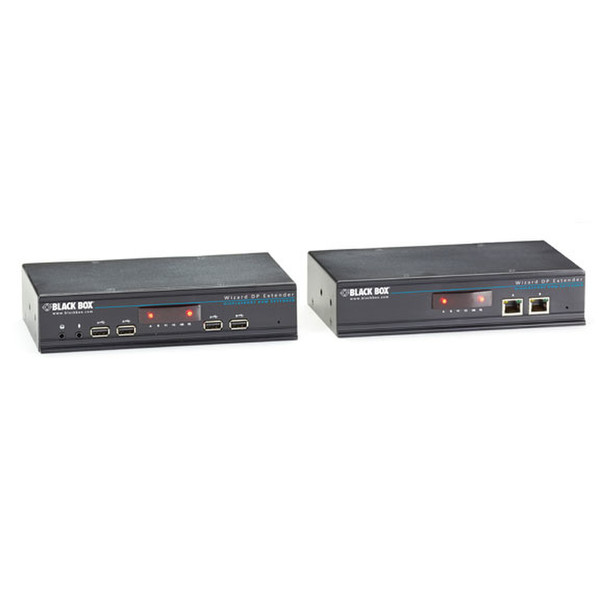

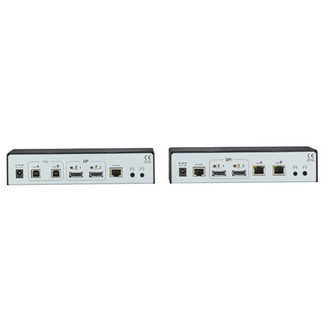

Black Box ACU5800A

Single/Dual-Head DisplayPort KVM Extender over CATx, USB 2.0, 3.5mm audio, RJ-45, 2.5mm DC, 0 - 40ºC, Windows, MAC, Sun, Linux/Unix, 100 - 240V AC, 50/60Hz, 650g, Black <b>Single/Dual-Head DisplayPort KVM Extender over CATx</b>
High-resolution DisplayPort KVM extender with USB 2.0

<b>ACU5800A Features</b>

- Plug-and-play.
- Extends DisplayPort, USB 2.0, USB HID, and digital/analog audio over CATx cables.
- Extend 3840 x 2160 4K or 2560 x 1600 dual-link video up to 330 feet (100 m).
- Extend 1920 x 1080 dual-head video up to 492 feet (150 m).
- Support for USB keyboards, mice, tablets, and touchscreens.

- Extension distance is up to 492 feet (150 m) for a single 1920 x 1080 screen, depending on cable type.
- Extension distance is 330 feet (100 m) for two 1920 x 1200 screens, or a single high resolution screen to 3840 x 2160.
- Supports Mac Cinema Display (2560 x 1440).
- USB 2.0 Hi-Speed for mass storage devices
- Supports keyboard, mouse, tablet, and touchscreens.
- S/PDIF, and analog audio
- Can also support 1920x1080 @ 120Hz when using a single video channel.
- Uncompressed system where by every pixel of every frame are sent without loss.
- Receiver supports DisplayPort Dual Mode, which allows monitors that only support HDMI or DVI to be used.
- Enables connection of any USB human interface device from mice and keyboards through to graphics, tablets, and more.
- Includes intelligent EDID management.
- Digital audio.
- HD quality analog audio.
- Use one CATx cable for basic performance and two CATx cables for highest performance.

The Black Box DisplayPort Extender is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station while maintaining the same user desktop experience.

It can transmit either two 1920 x 1200 video streams or one higher resolution video stream (2560 x 1600 WQXGA), digital audio (S/PDIF), analog audio, Hi-Speed USB 2.0 and USB 2.0 (full and low speed) over CATx cables.

<b>Perfect digital video, real time control</b>
The system is uncompressed, sending every pixel of every frame without loss. The receiver supports DisplayPort Dual Mode (DP++), meaning monitors that only support HDMI or DVI can be used (with the correct adapter cable).

<b>Single CATx cable</b>
Video, USB, and audio all pass along a single cable. A second CATx cable is required for the Hi-Speed USB 2.0 extension and increased video bandwidth.

<b>Up to 492 feet (150 m) extension distances</b>
Distance is dependent on the monitor resolution, number of monitors, cable type, and the number of patch panels and couplers.

<b>USB 2.0</b>
Enables connection of any USB human interface device from mice and keyboards through to graphics tablets, jog wheels, joysticks and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can be used through the transparent USB 2.0 Hi-Speed port.

<b>EDID management</b>
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.

<b>Plug and play</b>
This extender solution is plug-and-play. There is no need for drivers or software to be installed.

<b>Digital audio</b>
Supports the S/PDIF interface via an optical 3.5mm jack socket (dual use with analog audio via mini Toslink).

<b>HD-quality analog audio</b>
HD-audio quality (stereo channel 24 bit sampled at 96kHz) is available to transfer audio from local to remote for Line In / Line. Headsets with integrated microphone are also supported.

<b>This product includes:</b>
- (1) Transmitter
- (1) Receiver
- (2) 5 VDC, 4 Amp power supplies
- (2) USB Type A to B cables (6-ft each)
- (1) Display-port cable, (6.6-ft.)
- (2) 3.5-mm audio cables (10-ft.)
- (1) DB9 female to RJ-45 flash upgrade cable
- (2) US power cords
- (1) Safety information sheet with reference to www.blackbox.com for full user manuals
- (2) sets of four rubber feet
