产品特点
| 类型 |
Transmitter |
| 最大数字分辨率 |
1920 x 1200 pixels |

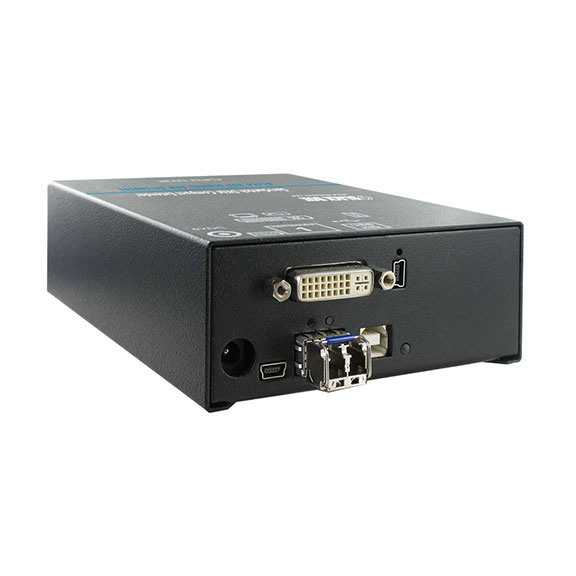

DKM FX Compact Transmitter, Fiber, DVI/VGA and USB at 2.5 Gbps
Use with the DKM or DKM FX chassis for matrix switching or as a point-to-point KVM extender.
- Connect users and computers to the DKM HD Video and Peripheral Matrix Switch, while extending them simultaneously over long distances.
- Order one transmitter for each computer connected to the DKM family of switches.
- Use one receiver for each user within the DKM system.
- These fiber-compatible extenders can be used with multimode or single-mode fiber optic cable.
- Maximum distance over multimode fiber is 3281 feet (1000 m).
- Maximum distance over single-mode fiber is 6 miles (10 km).
- Also available in models compatible with CATx cable.
- Use ACS2209A-RMK-R2 to mount up to four (4) units in 1U.
- Modular housings range in size from 2, 4, 6, or 21 ports for transmitter and receiver cards.
- Matrix switching chassis are available (DKM FX chassis, see "Related Items").
- The extenders also work as point-to-point KVM extenders.
The DKM HD Video and Peripheral Switching System extenders consist of at least one transmitter module (ACX1T) and one receiver module (ACX1R). The various extenders can be mounted in a modular housing (ACXMODH). The transmitter is connected directly to the source (computer, CPU, signage publisher); the receiver is connected to the console devices (monitor, keyboard, and mouse). Transmitters and receivers communicate with each other through the matrix switch via CATx or fiber optic interconnect cable.
