技术细节
| Full HD |
Y |
| 外接电源转接器 |
Y |
| HDCP |
Y |
| 视频接口类型 |
DisplayPort |

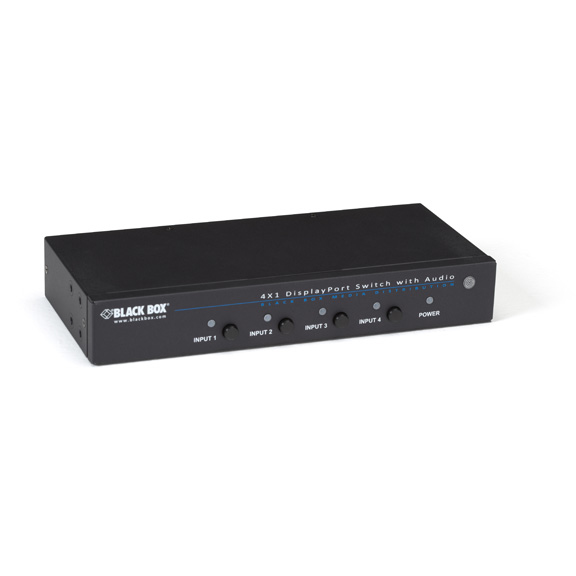

4 x 1 DisplayPort, w/ Serial & 3.5 mm Audio, 2560 x 1600, 0.7 kg, Black
<b>Quick Facts</b>
- Switch between four DisplayPort sources for output on a high-resolution DisplayPort display.
- Control using front-panel push buttons, an IR remote controller, or via a serial connection.
- Boasts HD resolutions up to 1080p.
<b>Further Details</b>
- DisplayPort 1.1 compatible and HDCP 1.1 compliant* for protected content.
- LEDs indicate which AV equipment source is being displayed.
- Connect to PCs, consumer electronics devices, and displays with DisplayPort connectors.
- Plug and play. No software required for operation.
- Ideal for conference rooms, classrooms, and multimedia workstations.
- Eliminates need to manually switch DisplayPort cables between sources.
- DisplayPort ports transmit both audio and video simultaneously, but it also has separate 3.5-mm audio connectors.
- Serial port enables control through a PC, serial controller device, or home theater system, integrating the entire AV environment.
- Control with IR remote from up to 15 feet (5 m) away. To choose your source device, simply press a number button.
- DisplayPort features locking connectors for more secure inputs/outputs—great for areas prone to accidental unplugging of AV equipment.
* NOTE: HDCP content displays on the selected source only; rebooting may be necessary when switching between HDCP content sources.
