能量控制
| 电流 |
2.5 A |
| 外接电源转接器 |
Y |
| 工作电压 |
5 V |
端口 & 界面
| VGA（D-SUB）输出端口 |
1 |
| RJ-45输出端口 |
4 |
| VGA（D-SUB）输入端口 |
1 |
| DC-IN插口 |
Y |
技术细节
| 最大传输距离 |
152.4 m |
| 类型 |
AV transmitter |
| 可支持的电缆类型 |
Cat5e, Cat5, Cat6 |

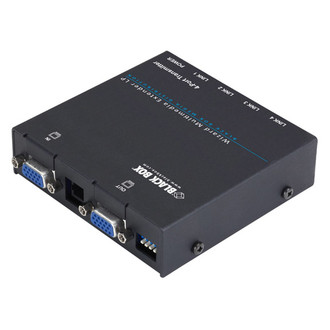

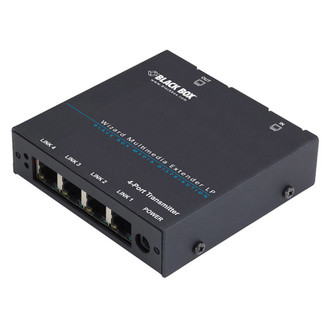

Wizard Multimedia Extender LP 4-Port Transmitter, up to 500 ft @ 1920 x 1200/60 Hz, Black
<b>Quick Facts</b>
- Distributes VGA video easily to four monitors.
- Sends maximum resolutions at a maximum distance of 500 feet (152.4 m).
- Transmits power to receivers. Great for areas short on outlets.
- Also great for digital signage.
<b>Further Details</b>
- Uses ordinary CATx cable—much cheaper than long VGA cable runs.
- Enables flexible location of screens without compromising video quality.
- Features feedthrough port for local monitoring or cascading units.
- Supports cloning of EDID information from the remote displays.
- Offers quick, easy setup. OS system independent.
- Compact, durable steel enclosure.
Simplify multiscreen HD video extension with this CATx-based VGA distribution solution. The Wizard Multimedia Extender LP 4-Port Transmitter extends analog video as far as 500 feet (152.4 m) using solid-conductor CATx cable*.
Used with separately sold Wizard Multimedia Extender LP Receivers (AVU4001A-RX), the transmitter enables you to broadcast Full HD 1080p video to four screens in four locations over CATx wiring already installed in your building. It broadcasts maximum resolutions at maximum distances—going farther than what’s ordinarily possible or practical with standard VGA cabling runs.
Even better, the receivers are line powered from the transmitter end over the CATx cable to the receivers, so power isn’t required at the remote end. This feature makes the extender ideal for rooms where you’re short on outlets, as well as reducing the number of cords around or behind screens.
In addition, the Wizard Multimedia Extender LP 4-Port Transmitter has a serial port that you use to switch remote video on and off. Doing this forces most VGA screens to go into standby mode, which, in turn, can help you save in utility costs and preserve the lives of your displays.
You can also attach a screen locally via the transmitter’s feedthrough VGA port. Or use the feedthrough port to cascade to another Wizard Multimedia Extender LP 4-Port Transmitter—great in applications where you have more than four displays that you want to reach with your host system. You can cascade another transmitter to support up to eight screens.
<b>The extender/broadcaster is great for:</b>
- Control centers
- Corporate signage networks
- Healthcare and medical imaging
- Classroom video distribution
- Broadcast/AV production studios
- Retail store applications
- Banking and financial video
- Military and government deployments
* NOTE: Distance depends on the characteristics and quality of the cable and the type of VGA source and display. Low-skew cables are recommended for distances over 164 feet (50 m).
<b>What’s included:</b>
- Wizard Multimedia Extender LP 4-Port Transmitter
- Power supply with cord
- VGA cable
- (4) self-adhesive rubber feet
- CD containing documentation
- Safety information leaflet
