能量控制
| 接受频率 |
60 Hz |
| 外接电源转接器 |
Y |
| 输入电压 |
110-120 V |
性能
| 波长 |
850 nm |
| 最大传输距离 |
220 m |
| 光纤模式结构 |
Multi-mode |
联网
| 双机热备系统 |
Half, Full |
| 以太网的数据传输率 |
1000 Mbit/s |
另外
| 数据传输率（最大） |
1000 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 连接方式 |
Wired |

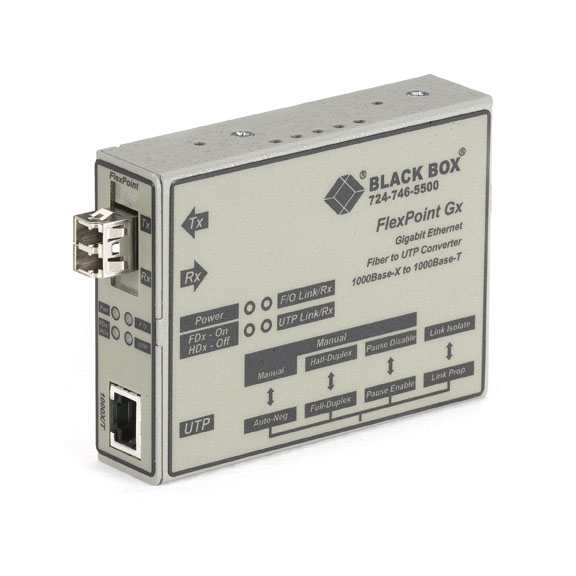

FlexPoint 1000BASE-T to 1000BASE-SX, LC, RJ-45, 220m (max)
<b>Description</b>
FlexPoint Modular Media Converter, 1000BASE-T to 1000BASE-SX, LC
<b>Quick Facts</b>
- Easy installation and transparent operation—no software required.
- Convert your copper Gigabit Ethernet network to fiber.
- Supports IEEE 802.3ab 1000BASE-T and 1000BASE-SX standards.
- Both UTP and fiber ports support full- and half-duplex operation.
<b>Further Details</b>
- Sends data up to 220 meters (721.7 ft.) on multimode fiber cable.
- Diagnostic LEDs report power availability and status of attached devices.
- Hardware available for mounting the converter to a wall or a DIN rail.
- Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
- Also available with a Universal Power Supply.
FlexPoint™ Converters from Black Box® are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.
The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.
Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.
