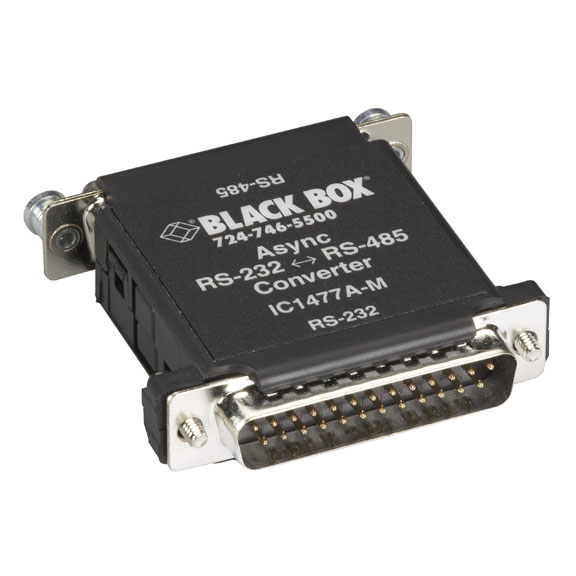

Black Box IC1477A-M-US

Async RS-232 to RS-485 Interface Bidirectional Converter, DB25 Male to DB25 Female

<b>Quick Facts</b>

- Converts RS-232 signals to RS-485 signals.
- Operates at speeds up to 115.2 kbps.
- Transmits up to 4000 feet (1219.2 m).
- Use point-to-point or multipoint.

<b>Further Details</b>

- Operates in half- or full-duplex over two or four wires.
- Works with or without transmit "echo."
- The converter's RS-232 side has a DB25 male connector configured as DCE.
- The converter's RS-485 side has a DB25 female connector.
- Also available in four other configurations. See Similar Products.

The Async RS-232 to RS-485 Interface Bidirectional Converter, DB25 Male to DB25 Female provides the same conversion of RS-232 signals. If the peripheral you’re connecting to operates on the RS-485 signal, you only need one IC1477A-M-US converter. But if the transmitting and receiving equipment only use RS-232, two converters are required, one at each end of the line.

<b>This product works with:</b>

Asynchronous Modem Eliminators (AMEs) (ME201–ME202, ME212–ME213)
