端口 & 界面
DisplayPort 数量 |
1 |
HDMI端口数量 |
1 |
DVI-I接口数量 |
1 |
eSATA端口数量 |
1 |
S/PDIF输出接口 |
Y |
麦克风/音频输入插孔 |
Y |
Line-out |
Y |
USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |
耳机输出端口 |
1 |
存储介质
集成读卡器 |
N |
总存储容量 |
500 GB |
儲存裝置 |
HDD |
另外
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
1 |

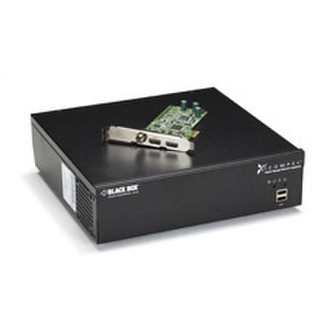

2U, HD Video Capture, Intel Core i3, 2GB RAM, 500GB HDD, 4.2kg, Black
<b>Quick Facts</b>
- An appliance-based solution that sets up fast with all software preinstalled.
- Free updates and no ongoing subscription or licensing fees for lower cost of ownership.
- Our highest-performing subscriber for playing SMB signage, plus HD video connectivity.
- 2U, rackmountable.
<b>Further Details</b>
- Controllable via a standard Web browser connection.
- Includes free professionally designed screen layouts.
- Easy to scale. Use standalone with one screen or across a network to show content on multiple screens.
- Screen content can be updated locally. Instantly add text messages or alerts for an audience.
- Supports 1080p video processing with DisplayPort, HDMI®, and DVI-I outputs.
- Plays up to four simultaneous videos—great for showing a mix of different video side by side.
- Also supports unlimited zones for text and images, and up to 15 zones for HTML.
- Easy to change and alter layouts and graphical effects with drag-and-drop tools.
- Set up multizone layouts with each zone playing different media from its own playlist.
- Simple to stream dynamic RSS feeds from the Internet. Supports XML.
- Rotate screen images for either portrait or landscape orientation.
- Highly secure Linux® based appliance with built-in firewall.
- GPIO external device input capabilities (for motion detectors, sensors, etc.).
- Wallmountable with the optionally available Wallmount Kit (ICOMP-WALL).
- Or mount it in a rack with the separately available Rackmount Ears (ICOMP-RACK).
