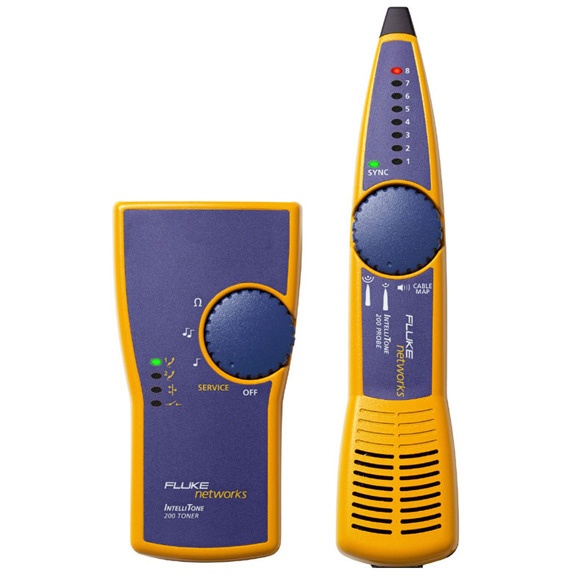

IntelliTone Pro 200 Toner and Probe Kit
A kit with tools for both digital and analog toning—and for troubleshooting RJ-11 and RJ-45 cables.
<b>Quick Facts</b>
- Uses digital signals on high-grade CAT5e/6/6a data cabling.
- Runs analog toning on voice-grade, coax, security/alarm, and speaker cabling.
- Identifies individual wire pairs as well as common twisted-pair cable miswires with its CableMap capability.
- Identifies and checks 10-/100-/1000-Mbps connectivity with NIC/hub indication.
<b>Further Details</b>
- Can be used with all types of copper cabling.
- Identifies and diagnoses POTS with Line 1 and Line 2 service and polarity.
- Eliminates confusion over cable location.
- Locates cables on active networks.
- Isolates a cable within a bundle, even with cable bleed.
- Checks polarity
- Verifies installations with end-to-end continuity tests.
- Detects opens, shorts, and reversed pairs.
- Digital signal processing rejects noise and false signals.
- Uses analog signals to locate individual wire pairs.
- Works safely on active networks.
- Provides visual and audible signal strength identification.
<b>Two tools in one.</b>
The IntelliTone Pro 200 Kit contains a toner and probe to offer both digital and analog toning. It's all you need to locate and verify virtually any copper cable, regardless of application or environment. That includes the twisted-pair, telephone, coax, security, and alarm wiring found in most buildings today!
With the IntelliTone Pro 200 Kit, you can locate and isolate the most hidden or bundled data, voice, and video cables. You'll be able to find cables at patch panels, switches, termination blocks, or even in floors, ceilings, and walls. Plus, the IntelliTone Pro 200 Kit enables you to validate and troubleshoot wiring on RJ-11 and RJ-45 cables A CableMap function to identify common miswires in twisted-pair cable. What's more, it detects telephone and Ethernet service so you can determine whether a line is a data or a telephone line.
<b>Go digital.</b>
Use the digital mode to trace and locate data cabling on active networks. This mode operates at a higher frequency to match high-end CAT5e/6/6a cabling. The higher frequency enables the tone to overcome competing data signals. Multiple tone types in the signal help you locate, isolate, and verify a cable. Digital toning also eliminates cable misidentification from signal bleed and radiated/ambient noise.
<b>Run analog.</b>
Use the SmartTone analog toning to isolate individual wire pairs and to trace voice-grade cabling (CAT3 and below) as well as audio, video and security cabling, and bare wire. These cables are optimized for lower frequency transmissions and are more easily isolated with a low-frequency tone. In analog mode, the tool will change "songs" when a pair is shorted at the far end to make pair identification precise.
