电池
| 电池容量 |
9 Ah |
| 热插拔电池 |
Y |
| 电池充电时间 |
3 h |
| 电池电压 |
12 V |
| 半载典型备用时间 |
7 min |
| 全载典型备用时间 |
3 min |
| 冷启动 |
Y |
| 支持的的电池数量 |
6 |
性能
| 波形 |
Sine |
| 噪音水平 |
40 dB |
| 相数 |
1 |
| UPS 拓扑 |
Line-Interactive |
| 自动电压调节器（AVR） |
Y |
设计
| 机架容量 |
2U |
| 格式要素 |
Rackmount/Tower |
| 显示器 |
LCD |
能量控制
| 输入工作电压（最大值） |
288 V |
| 输入工作电压（最小值） |
176 V |
| 效率 |
97% |
| 紧急电源关闭(EPO) |
Y |
| THD输出电压 |
10% |
| 电源输入频率 |
45/65 Hz |
| 输出功率（瓦特－安培） |
3000 VA |
| 波峰因数 |
3:1 |
| 输出工作电压（最小值） |
220 V |
| 输出工作电压（最大值） |
240 V |
| 输出功率因数 |
0.9 |
| 输出电压调节 |
+-5% |
| 输出功率 |
2700 W |
环境条件
| 运行湿度范围(H-H) |
0 - 95% |
| 工作高度 |
0 - 1500 m |
重量和尺寸
| 深度 |
600 mm |
| 重量 |
29500 g |
| 宽度 |
438 mm |
| 高度 |
86.5 mm |
端口 & 界面
| USB2.0端口的数量 |
1 |
| 交流电（AC）插座数量 |
8 AC outlet(s) |
另外
| 产品色彩 |
Black |
| RS-232接口 |
1 |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 40 °C |
1000 VA, 900 W, 7Ah, RS-232, USB, 176 - 288 VAC, 16 kg, Black
Operational Efficiency

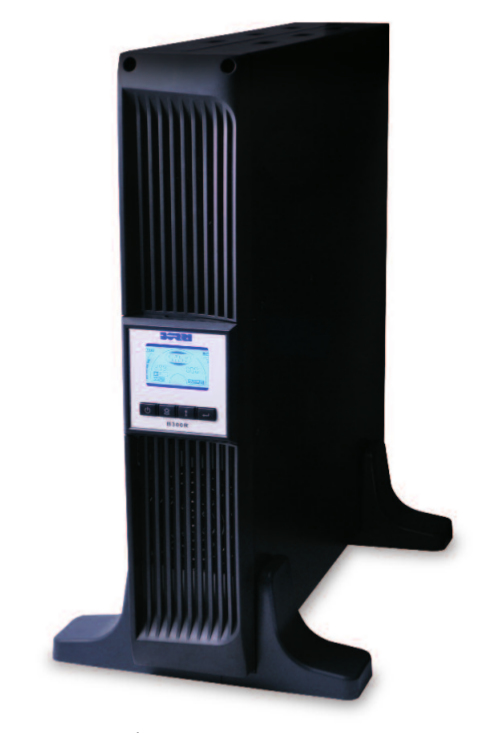

Borri’s B300 Rotation is a compact, line interactive, pure sine wave UPS. It delivers 28% more useable power than other UPS systems in its class thanks to the up-rated 0.9 output power factor. The series also provides an overall AC efficiency of 97% whilst operating in its most resilient mode of protection. Giving full protection against power sags, surges, spikes, brownouts, line noise and complete black outs, the B300 Rotation has an important role to play in an organisations business continuity plan.
When in rack-mount form all of the range take only 2U of rack space whilst including batteries for standard runtime, this is while maintaining a depth of only 430mm up to 1500VA/ 1350W and 600mm for the 2000VA/1800W the 3000VA/2700W.
Flexibility
Affordable, reliable and flexible, the B300 Rotation encompasses all the key features of a smart, line interactive, single phase UPS solution. Its rack mountable and floor standing tower ergonomics give the B300 Rotation maximum installation flexibility.Offering USB, Serial, EPO and RJ11/RJ45 ports as standard and with a smart slot for optional Network Management Cards (SNMP), ModBus 485 cards and Programmable Relay cards the user has many choices in how to manage communication with the UPS and how to configure the unit to give alerts as required.
