电池
| 电池容量 |
7 Ah |
| 电池类型 |
Sealed Lead Acid |
| 电池充电时间 |
3 h |
| 电池电压 |
36 V |
| 支持的的电池数量 |
3 |
性能
| 波形 |
Sine |
| 相数 |
1 |
| UPS 拓扑 |
Double-conversion (Online) |
设计
| 机架容量 |
2U |
| 格式要素 |
Rackmount/Tower |
| 显示器 |
LCD |
能量控制
| 输入工作电压（最大值） |
280 V |
| 输入工作电压（最小值） |
160 V |
| 效率 |
95% |
| 紧急电源关闭(EPO) |
Y |
| 电源输入频率 |
50 Hz |
| THD输入电流 |
5% |
| 输出功率（瓦特－安培） |
1000 VA |
| 波峰因数 |
3:1 |
| 输出工作电压（最小值） |
220 V |
| 输出工作电压（最大值） |
240 V |
| 输入功率因数 |
0.99 |
| 输出功率因数 |
0.8 |
| 输出电压调节 |
+-1% |
| 输出频率调节 |
+-0.1 Hz |
| 输出功率 |
800 W |
重量和尺寸
| 深度 |
405 mm |
| 重量 |
16000 g |
| 宽度 |
440 mm |
| 高度 |
88 mm |
端口 & 界面
| USB2.0端口的数量 |
1 |
| 交流电（AC）插座数量 |
6 AC outlet(s) |
认证标准
| 认证 |
ISO9001\nEN62040-1-1\nEN62040-2\nCE\nUL |

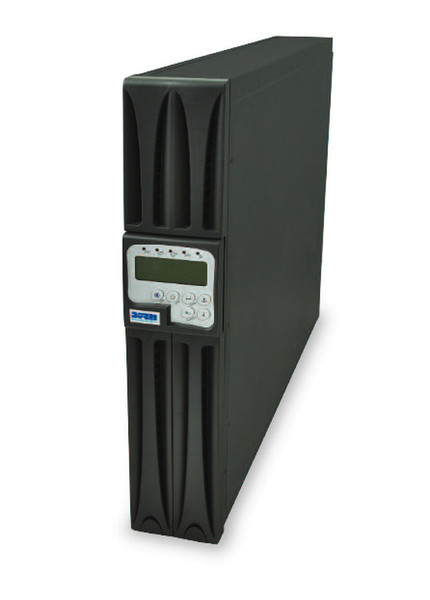

1000 VA, 800 W, 7Ah, RS-232, USB, 160 - 280 VAC, 16 kg, Black
Scalable Runtimes
All 1-3kVA Rotation UPS systems include internal batteries to give a runtime of up to 10 minutes at full load.
For longer backup times in the event of a mains failure, matching 2U battery modules are provided to scale the runtime from minutes to hours. These can be simply connected to the modules via the dedicated rear mounted DC connector.
Remote Monitoring
For external monitoring all Rotation UPS units also include remote monitoring software for connection to a single server or PC via the USB or RS232 port. This is included free of charge.
Network Management
Making use of the smart slot with the Network management SNMP card, the Rotation UPS can be connected to a local area network via the Ethernet port. The UPS is then assigned its own IP address which can be interrogated from user selected interfaces on the network.
Safe Shutdown
Once connected to the LAN (Local Area Network) the free issue client software can be installed on the servers for monitoring and a safe and controlled event of an extended power outage.
