技术细节
| 木材钻孔直径(最大) |
32 mm |
| 钢材钻孔直径(最大) |
13 mm |
| 齿轮数量 |
2 |
| 变速 |
Y |
| 正向/反向操作 |
Y |
| 怠速(二档齿轮) |
0 - 3000 RPM |
| 软胶手柄 |
Y |
| 夹头(卡盘)类型 |
Keyless |
| 声功率级 |
93 dB |
| 防护等级 |
II |
| 速度调节设置 |
2 |
| 不确定度 K |
1.5 m/s² |
| 安全滑差离合器 |
Y |
| 不确定性 K |
3 dB |
| 铝钻孔直径(最大) |
20 mm |
| 声压级 |
82 dB |
| 卡盘爪宽度(最大) |
13 mm |
| 卡盘爪宽度(最小) |
1 mm |
| 空载转速 |
500 RPM |
| 最大扭矩 |
39.5 Nm |
| 怠速(一档齿轮) |
0 - 1000 RPM |
| 振动发射值 (金属) |
7.5 m/s² |

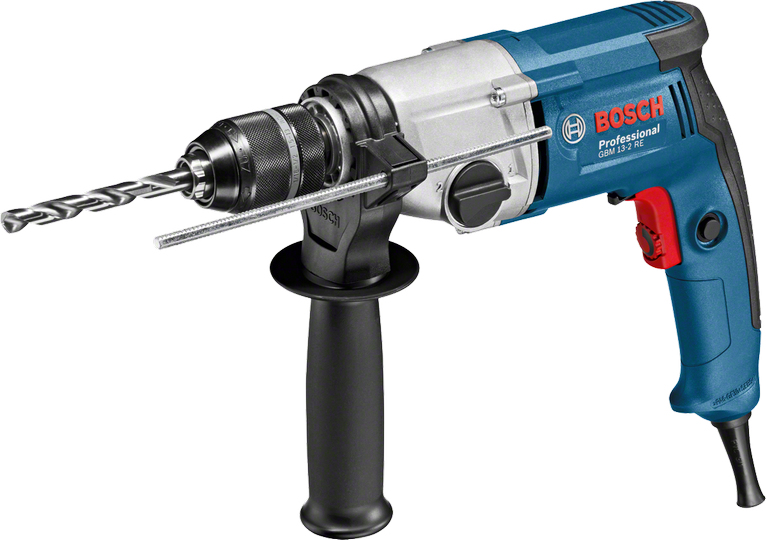

750W, 353W, 2 gears, 0 - 1000/3000rpm, Keyless chuck 1 - 13mm, forward/reverse rotation, 39.5/12.5Nm, 2.4kg, II
<b>Why this tool?</b>
- Control Electronic for precise drilling starts
- Drill bit is prevented from slipping through thanks to high clamping force and automatic retightening during drilling (only on precision chuck versions)
- Overload clutch to protect the user and the machine
- Small width across corners of 29 mm
- Spindle collar diameter of 43 mm (European standard) – can be used in drill stands
- Fully ball and roller bearing-mounted for long lifetime and precise working
- Forward/reverse rotation
- Speed preselection with setting wheel
- A fast work rate for drilling holes of up to 13 mm in steel thanks to powerful 750 watt motor and high torque
- Precise work results due to compact, ergonomic design and metal keyless chuck
- Versatile applications thanks to 2-speed gearbox and speed preselection with setting wheel
