技术细节
| 混凝土钻孔直 径(最大) |
10 mm |
| 冲击钻 |
Y |
| 螺杆直径(最大) |
5 mm |
| 正向/反向操作 |
Y |
| 软胶手柄 |
Y |
| 最大扭矩 |
7.5 Nm |
| 振动发射值 (金属) |
4 m/s² |
| 木材钻孔直径(最大) |
20 mm |
| 钢材钻孔直径(最大) |
10 mm |
| 夹头(卡盘)类型 |
Key |
| 声功率级 |
108 dB |
| 不确定度 K |
1.5 m/s² |
| 键控夹头 |
Y |
| 不确定性 K |
3 dB |
| 声压级 |
97 dB |
| 冲击率 |
33000 bpm |
| 空载转速 |
3000 RPM |

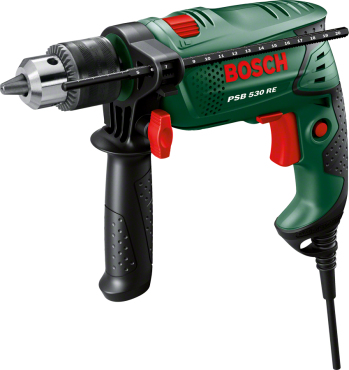

530W, 1.6kg, 1.5Nm
- As easy as can be: compact design with softgrip, low weight (only 1.6 kg) and outstanding handling ensure optimum user comfort and maximum performance for every job
- Powerful 530 W motor and 10 mm drilling diameter in masonry – making even hard jobs easy
- Bosch Electronic speed control: “accelerate” from 0 – max. using the trigger switch, which enables fingertip control of the power, e.g. when starting to drill in smooth surfaces and when driving screws
- Keyed chuck for safe and easy bit changes
- Forward/reverse rotation
- Convenient work due to integrated switch for continuous operation
- Dust extraction port – dust extraction available as an optional accessory
- Screwdriving/Drilling/Impact drilling function switch for material-specific work
- New cable guide with hanging hook for practical storage
