管理功能
| 支持多重播放 |
Y |
| 支持服务质量（QoS） |
Y |
| 系统事件日志 |
Y |
| 网上管理 |
Y |
数据传输
| MAC 地址表 |
8000 entries |
| 支持数据传输率 |
10/100/1000 Mbps |
| 交换容量 |
56 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
| VLAN 数量 |
4096 |
联网
| 端口镜像 |
Y |
| 链路汇集 |
Y |
| IP路由 |
Y |
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| 广播风暴控制 |
Y |
| IGMP侦听 |
Y |
| 自动 MDI / MDI - X 检测功能 |
Y |
| 速率限制 |
Y |
| 生成树协议 |
Y |
| 全双工传输 |
Y |
| 流量控制支持 |
Y |
设计
| 安全 |
EN 55022: 2006+A1: 2007 Class A, EN 61000-3-2: 2006+A1:2009+A2:2009 Class A, EN 61000-3-3: 2008, EN 61000-6-1: 2007, EN 61000-6-3: 2007, EN 55024: 1998+A1:2001+A2:2003, EN 300 386 (V1.4.1): 2008, IEC 61000-4-2: 2008 ED. 2.0, IEC 61000-4-3: 2006+A1:2007+A2:2010 ED. 3.2, IEC 61000-4-4: 2004+A1:2010 ED. 2.0, IEC 61000-4-5: 2005 ED. 2.0, IEC 61000-4-6: 2008 ED. 3.0, IEC 61000-4-8: 2009 ED. 2.0, IEC 61000-4-11: 2004 ED. 2.0 |
| 格式要素 |
1U |
| 机架安装 |
Y |
其他功能
| 液晶显示器功率 |
Y |
| 接受频率 |
50 - 60 Hz |
| 无线局域网连接 |
N |
| 网路功能 |
Gigabit Ethernet |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 电源类型 |
AC |
安全
| 存取控制清单(ACL) |
Y |
| SSH / SSL支持 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
能量控制
| 电源供应数量 |
1 |
| 输入电压 |
100 - 240 V |
端口 & 界面
| SFP/SFP+端口数量 |
4 |
| 基本交换 RJ-45 以太网端口数量 |
24 |
| DC-IN插口 |
Y |
| 控制台端口 |
RJ-45 |
| SFP模块插槽数量 |
4 |
另外
| 巨型帧 |
Y |
| 以太网连接器 |
Y |
| 连接方式 |
Wired |

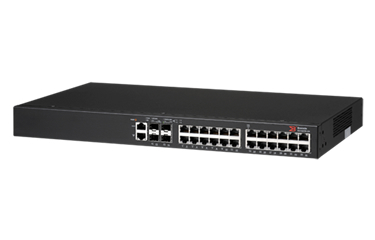

24x ports, 4x 1 GbE SFP ports, 525 W, 56 Gbps, Layer 2, PoE, Black
- Offers enterprise-class stackable switching at an entry-level price, allowing organizations to buy what they need now and easily scale as demand grows and new technologies emerge
- Delivers unprecedented feature/price value for enterprise applications, including Unified Communications (UC) and mobility, with 10 Gigabit Ethernet (GbE) and PoE/PoE+
- Provides unmatched availability for low-cost switching with redundant uplink/stacking ports, hitless stacking failover, and configurable power redundancy
- Simplifies network operations and protects investments with Brocade HyperEdgeTM technology, enabling single-point network lifecycle management and advanced services sharing across a heterogeneous stack
- Includes the Brocade Assurance® Limited Lifetime Warranty and three years of technical support
Today’s organizations expect their enterprise campus LANs to deliver more services to more users at a lower cost. These services include next-generation business applications as well as anytime, anywhere access for mobile devices. At the same time, campus LANs must be able to scale easily to meet future demands and efficiently evolve within dynamic business environments.
Brocade® ICXTM 6430 and 6450 Switches provide enterprise-class stackable LAN switching solutions to meet the growing demands of campus networks. Designed for small to medium-size enterprises, branch offices, and distributed campuses, these intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price—without compromising on performance and reliability. The Brocade ICX 6430 and 6450 are available in 24- and 48-port 10/100/1000 Mbps models and 1 Gigabit Ethernet (GbE) or 10 GbE dual-purpose uplink/stacking ports (see Figure 1)—with or without IEEE 802.3af Power over Ethernet (PoE) and 802.3at Power over Ethernet Plus (PoE+)—to support enterprise edge networking, wireless mobility, and IP communications.
