The ProClip is a mounting bracket for the vehicles dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Attention! Read all instructions before attaching the ProClip.

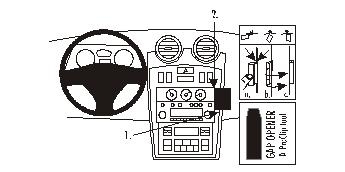

This ProClip consists of two parts.
Part 1. Attaching part (the smallest part)
Part 2. ProClip face plate
1. Press the thin end of the enclosed gap opener into the gap between the dashboard and the surrounding frame to widen the gap. Peel off the cover of the adhesive tape on Part 1. Press Part 1 into the gap above the gap opener. Press Part 1 away from the steering wheel, so the adhesive tape attaches and the angled edge hooks behind/under the control panel. Pull out the gap opener.
2. Press the gap opener into the gap between the control panel and the surrounding frame. Open up the predrilled holes in Part 2 with a screwdriver (Philips).
3. Press the lower corner of the left edge of Part 2 into the gap below the gap opener. Press hard on the upper corner of the left part of Part 2 so it goes into the gap. Pull out the gap opener. Place Part 2 over Part 1 so the holes match. Screw Part 2 onto Part 1 with the enclosed screws. Screw the screws straight into Part 1, in the same angle as Part 1.
4. The ProClip is in place.
