Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Attention! Read all instructions before attaching the ProClip.

Peel off the cover of the adhesive tape on the ProClip.

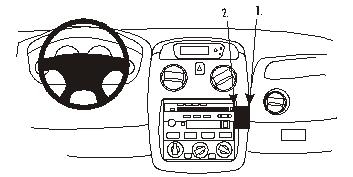

1. Open the glove compartment and place the right side of the ProClip, with the angled edge, into the gap between the center console and the padded part of the dashboard.

2. Slide/push the ProClip upwards so the angled edge stays in the gap and behind the padded part of the dashboard.

3. Press forward on the left side of the ProClip, towards the dashboard, so the grooved edge goes into the gap between the stereo and the surrounding panel frame. Press firmly until you see or hear/feel it snap into place.

4. The ProClip is in place.
