Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount, NOT for Navigator Attention! Read all instructions before attaching the ProClip.
This ProClip consists of two parts.
Part 1. Attaching piece.
Part 2. ProClip faceplate.

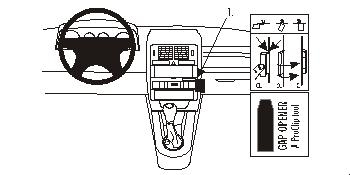

Press the thin end of the enclosed gap opener into the gap between the control panel and the surrounding frame in the same position as in the picture.

1. Press the angled edge of Part 1 into the gap below the gap opener.

2. Push Part 1 away from the steering wheel so the angled edge hooks under/behind the control panel. Pull out the gap opener.

3. Press a screwdriver through the holes in the faceplate on Part 2 to open them up. Peel off both adhesive tape covers on Part 2. Place Part 2 onto Part 1 so the holes match up. Screw the enclosed screws into the holes.

4. The ProClip is in place.
