Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions.

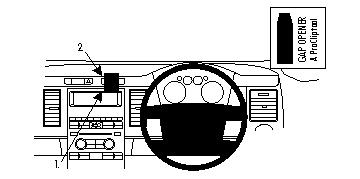

This ProClip can be attached to the dash anywhere within the width of the information window. Center mount Please read all of the instructions and look at the pictures before attaching the ProClip.

1. Press the thin end of the enclosed gap opener into the seam/gap between the dashboard overhang and the wood grain panel, to widen the gap. Peel off the cover of adhesive tape on the ProClip.

2. Hook/Place the angled edge on the lower part of the ProClip around the center panel edge surrounding the information window.

3. Place your fingers around the upper part of the ProClip and push firmly forward so the grooved edge goes into the gap next to the gap opener.
Press until you see or hear/feel it click into place. Pull out the gap opener.

4. The ProClip is in place.
