The ProClip is a mounting bracket for the vehicles dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Please read all of the instructions and look at the pictures before attaching the ProClip. It is important to place the ProClip in the exact same position as shown in the pictures. This ProClip is devided into two parts.
Part 1: Attaching part (the smallest part).
Part 2: ProClip face plate.

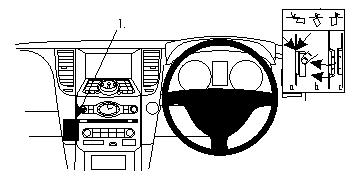

1. Peel off the cover of the adhesive tape on Part 1. Place the thin edge against the seam/gap between the center console panel frame and the console edge. Place Part 1 so the top is aligned with the seam above the CD slot.
2. Press the thin edge firmly into the gap and at the same time bend Part 1 to the left until you see or hear/feel it click into place.
3. Press a screwdriver (Philips) firmly through the predrilled holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match and the adhesive tape on Part 2 is on the right side. Do not press the tape to the center console panel frame yet. Screw Part 2 onto Part 1 using the enclosed screws. Right before you tighten the screws press the ProClip to the left with your thumb for optimal adjustment of the mount. Then press the adhesive tape on the right side of Part 2 to the center panel. Hold the ProClip in that position and tighten the crews.
4. The ProClip is in place.
