Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Left mount, High, NOT for GTC Please read all of the instructions and look at the pictures before attaching the ProClip.

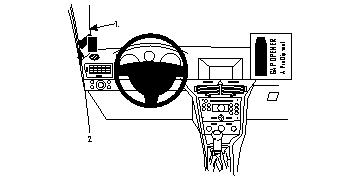

1. Peel off the cover of the adhesive tape on the ProClip. Hook the angled edge on the ProClip over the panel by the windshield, but do not attach the adhesive tape yet.

2. Hold the enclosed gap opener upright on the dashboard and adjust the height of the ProClip so the lower edge is aligned with the gap opener, placed one gap opener length above the dashboard.

3. Pull the rubber cover slightly out from the panel. Hook the angled edge on the ProClip around the panel, under the rubber cover. Press on the ProClip so the adhesive tape attaches.

4. The ProClip is in place.
