Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Console mount Attention: Please read all of the instructions and look at the pictures before attaching the ProClip. NOTE: This ProClip can also be attached on the left side of the console as shown in picture 3. For either side, follow the instructions below.

Peel off the cover of the adhesive tape on the ProClip and clean the surface on top of the console edge with the enclosed alcohol pad.

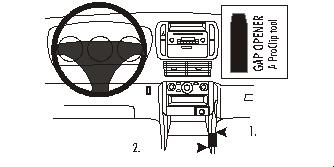

1. Hook the angled edge on the ProClip, with notches, into the second row of holes in the console sidewall.

2. Press the ProClip firmly to the left, towards the steering wheel, so the angled edge on the left side of the ProClip snaps over the console edge. Press down on top of the left side of the ProClip for best possible attachment of the adhesive tape.

3. The ProClip is in place on the left side of the console.

4. The ProClip is in place on the right side of the console.
