Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount Attention! Read all instructions before attaching the ProClip

Press the thin end of one of the enclosed gap openers into the gap between the frame surrounding the control panel and the air vent frame to widen the gap. Peel off both adhesive tape covers on the ProClip.

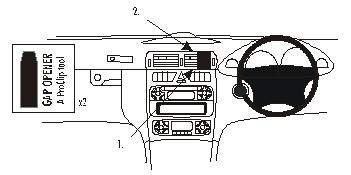

1. Press the lower curved part of the ProClip into the gap next to
the gap opener. Press firmly until it snaps into the gap. Pull out the gap
opener.

2. Press the thin end of both the gap openers into the gap between the
padded dashboard and the air vent frame (on each side of the ProClip) to widen the gap.

3. At the same time: Press forward on the upper part part of the ProClip and downwards on top of the ProClip so the angled edge snaps into the gap between the gap openers. Pull out the gap opener.

4. The ProClip in place.
