The ProClip is a mounting bracket for the vehicles dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Attention! Read all instructions before attaching the ProClip
Part 1: The attaching part (the smallest part)
Part 2: The ProClip faceplate

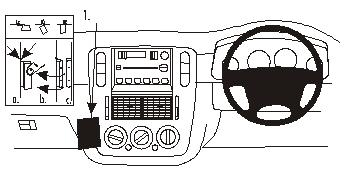

1. Peel off the cover of the adhesive tape on Part 1 and place the thin angled edge into the gap between the center dashboard panel frame (next to the climate control) and the padded dashboard. Press the angled edge firmly into the gap and bend Part 1 to the right until you hear/feel it snaps into place.
2. Then press hard on Part 1, towards the dashboard, until you hear/feel it snaps behind the panel frame. (This could sound like a second snap in the panel depending of how hard you pressed the first time)
3. Press a screwdriver (Philips) firmly through the predrilled holes in Part 2 to open them up. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match and the adhesive tape on Part 2 is on the right side attaching to the center dashboard panel. Screw Part 2 onto Part 1 using the enclosed screws. NOTE: DON'T SCREW THE SCREWS INTO PART1 IN AN ANGLED POSITION BASED ON THE ANGLE OF PART 2, BUT STRAIGHT INTO PART 1.
4. The ProClip is in place.
