Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount Attention! Read all instructions before attaching the ProClip.

Peel off the cover of the adhesive tape on the ProClip.

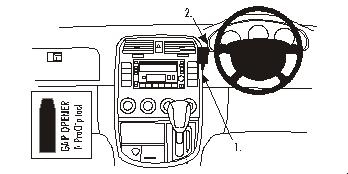

1. Press the thin end of the enclosed gap opener into the gap between the padded dashboard and the wood grain panel to widen the gap.

2. Press the curved edge on the left side of the ProClip into the gap above the gap opener. Pull out the gap opener.

3. Press the thin end of the enclosed gap opener into the gap between the padded dashboard and the instrument panel frame to widen the gap. Press forward on the right side of the ProClip so the grooved edge snaps into the gap below the gap opener. Press until you see or hear/feel it snaps into place. Pull out the gap opener.

4. The ProClip is in place.
