The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount Please read all of the instructions and look at the pictures before attaching the ProClip.
This ProClip consists of two parts.
Part 1. Attaching part (the smallest part)
Part 2. ProClip face plate

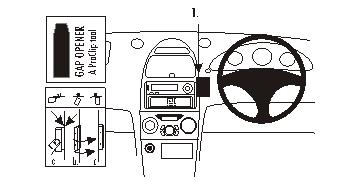

1. Press the thin end of the enclosed gap opener into the gap between the frame surrounding the control panel and the dashboard to widen the gap. Peel off the cover of the adhesive tape on Part 1. Press Part 1 into the gap below the gap opener.
2. Press to the right on Part 1, towards steering wheel, so the angled edge hooks behind the frame surrounding the control panel and the adhesive tape attaches. Pull out the gap opener.
3. Open up the predrilled holes in Part 2 with a screwdriver (Philips). Remove the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match. Screw Part 2 onto Part 1 with the enclosed screw. NOTE! Screw the screws straight into Part 1, in the same angle as Part 1.
4. The ProClip is in place.
