The ProClip is a mounting bracket for the vehicles dashboard. Onto the Proclip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount, High Please read all of the instructions and look at the pictures before attaching the ProClip. NOTE! It is very important to place the ProClip exactly as shown in the pictures.

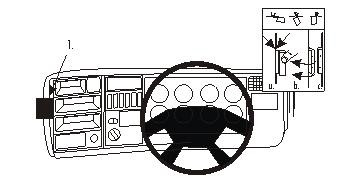

Part 1. Attaching part (the smallest part)
Part 2. ProClip face plate.
1. Peel off the cover of the adhesive tape on Part 1. Press the angled edge on Part 1 into the gap between the control panel and the surrounding frame.
2. Press part 1 away from the steering wheel so the angled edge hooks behind the control panel. Press forwards on the left side so the adhesive tape attaches.
3. Open up the predrilled holes in Part 2. Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes match. Screw Part 2 onto Part 1 with the enclosed screws. Screw straight into Part 1, in the same angle as Part 1.
4. The ProClip is in place.
