Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Please read all of the instructions and look at the pictures before attaching the ProClip.

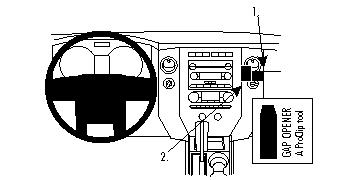

1. Press the thin end of the enclosed gap opener into the gap between the two dashboard sections, to widen it. Peel off the cover of adhesive tape on the ProClip.

2. Hold the ProClip in an almost 45 degree angle of the dashboard and press/hook the curved edge on the right side of the ProClip into the gap between the air vent panel frame and the dashboard front panel. Flip the ProClip towards the dashboard so the curved edge hooks behind the front panel of the dashboard.

3. Press firmly forward on the left side of the ProClip so the grooved edge goes into the gap above the gap opener. Press until you see or hear/feel it snaps into place. Pull out the gap opener.

4. The ProClip is in place.
