Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Center mount Please read all of the instructions and look at the pictures before attaching the ProClip.

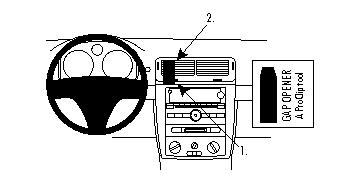

1. Press the thin end of the enclosed gap opener into the gap between the center console panel frame and the padded part of the dashboard, to widen it. Peel off the cover of adhesive tape on the ProClip.

2. Hold the ProClip in an almost horizontal position and press the curved edge on the lower part of the ProClip into the gap next to the gap opener. The flip it upwards so the curved edge hooks behind the panel frame.

3. Press firmly down on top of the ProClip and insert the grooved edge into the air vent. Then let go of the pressure so the grooved edge hooks onto the upper air vent edge. Place your fingers underneath the upper part of the ProClip and press upwards to make sure the grooved edge is properly attached to the air vent edge. Pull out the gap opener.

4. The ProClip is in place.
