Brodit ProClip

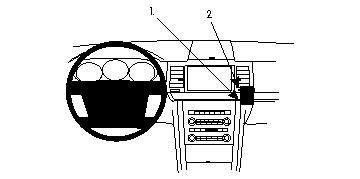

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Please read all of the instructions and look at the pictures before attaching the ProClip. This ProClip fits models with and without factory navigation screen.

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Close the air vent while attaching the ProClip. (When the ProClip is attached the air vent can opened and adjusted freely.) Peel off the cover of adhesive tape on the ProClip.

2. Hook/Place the angled edge on the lower part of the ProClip around the edge of the wood grain trim.

3. Place your index fingers underneath the top part of the ProClip. Then push upwards and hook the angled edge around the air vent edge (into the seam between the air vent and the surrounding panel frame). Adjust the air vent to desired position.

4. The ProClip is in place.
