The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount, ONLY for models with manual gear shift. Please read all of the instructions and look at the pictures before attaching the ProClip.

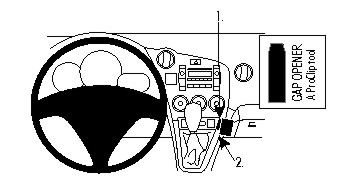

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the cover of adhesive tape on the ProClip. Place your hand over the ProClip. Press the left side of the ProClip firmly down towards the center panel and then press the upper left corner of the ProClip into the seam/gap between the center panel and the surrounding panel frame. Slide your thumb down and press the rest of the angled edge into the gap.

2. Press the thin end of the enclosed gap opener into the gap between the console edge panel and the console side wall, above the ProClip, to widen the gap. Press down on the right side of the ProClip so it flexes forward and hooks into the gap below the gap opener. Press until you see or hear/feel it click into place. Pull out the gap opener.

3. Push the lower right side of the ProClip firmly towards the console to make sure the angled edge is all the way into the gap

4. The ProClip is in place.
