Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Please read all of the instructions and look at the pictures before attaching the ProClip.

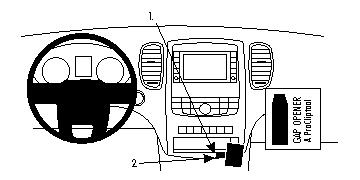

1. Press the thin end of the enclosed gap opener into the gap between the
dashboard and the compartment frame edge, to widen the gap. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the adhesive tape cover on the ProClip.

2. Slide the top thin part of the ProClip into the compartment ledge below the
rubber mat.

3. Pull the lower part of the gap opener towards you a little, to widen the gap
further. Press firmly forward on the lower part of the ProClip so the angled
edge hooks into the gap next to the gap opener. Press until you see or hear/feel it click into place. Pull out the gap opener

4. The ProClip is in place.
