Brodit ProClip

The ProClip is a mounting bracket for the vehicle’s dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Right mount Please read all of the instructions and look at the pictures before attaching the ProClip. It is very important to place the ProClip exactly as shown in the pictures.

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the adhesive tape covers on the ProClip. Pull out the rubber sealent on the A-post slightly.

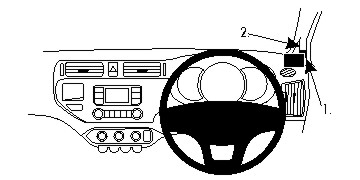

2. Place the ProClip right above the small oval part of the A-post (see arrow in picture). Press the angled edge on the lower part of the ProClip into the gap and hook it around the A-post.

3. Press the ProClip upward/forward so the angled upper part hooks around the A-post. Press until you hear/feel it snaps into place.

4. The ProClip is in place.
