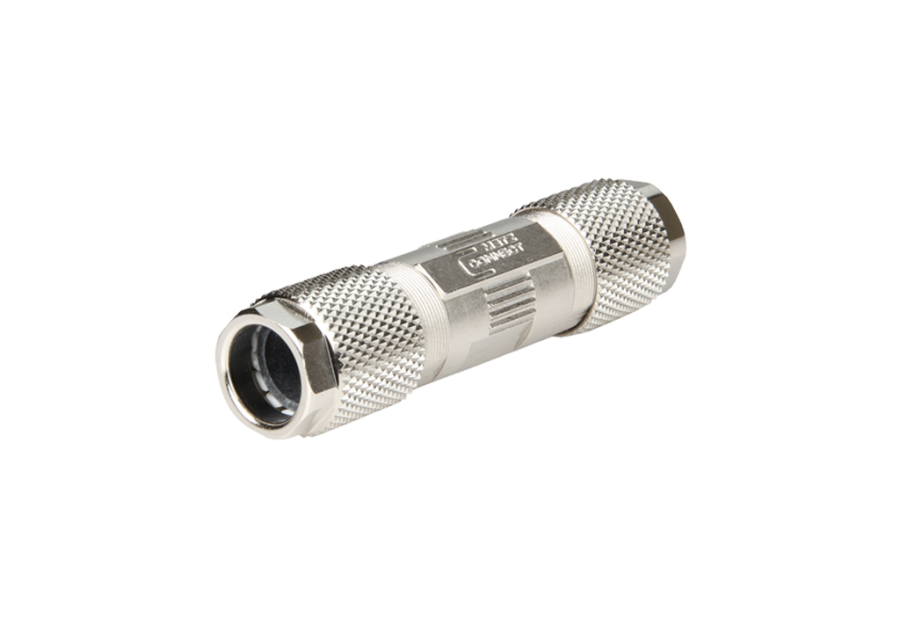

BTR NETCOM 130863-02-E wire connector

Cable connector class FA - cable connector for field assembly Class FA for 8 wire cables
- to connect / extend / repair / relocate copper data cables up to Cat.7A
- compliance to Class FA up to 1000 MHz according to ISO/IEC 11801 Ed.2.2:2011-06 in connection with Cat.7A copper cables
- GHMT certified to ISO/IEC 11801 Ed.2.2:2011-06 and IEC 61156-5 Ed.2.1:2012-12
- for 10 GBit as per IEEE 802.3an
- suitable for Power over Ethernet (PoE, PoE plus and UPoE)
- compact design: diameter 16.8 mm x length 64 mm
- IP67 protected housing in combination with appropriate cables
- refined zinc die-cast housing consisting of three parts only suitable for industrial applications
- easy and fast assembly without special tools
- shield connection and strain relief integrated in the housing
- easy connection of data cables AWG 24/1 to 22/1 (solid wire) and AWG 24/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
- solid copper wire diameter 0.5 to 0.64 mm
- stranded copper wire diameter 0.61 to 0.76 mm
- conductor diameter up to 1.6 mm
- suitable for cables with an overall diameter of 5.0 to 9.7 mm
