技术细节
| HDBaseT certified |
Y |
| HDCP和EDID旁路 |
Y |
| HDCP |
Y |
| 可支持的电缆类型 |
Cat5, Cat5e, Cat6 |
| 最大传输距离 |
100 m |
| 类型 |
AV transmitter & receiver |
| 墙壁支架 |
Y |
端口 & 界面
| RJ-45输入端口 |
1 |
| RJ-45输出端口 |
1 |
| HDMI输入 |
1 |
| 串口类型 |
RJ-11 |
| USB 连接器形状 |
Mini-USB B, USB Type-A |
| RJ - 11端口数量 |
2 |
| DC-IN插口 |
Y |
重量和尺寸
| 发射器尺寸（宽x深x高） |
98 x 102 x 28 mm |
| 接收器尺寸（宽 x 深 x 高） |
98 x 102 x 28 mm |
能量控制
| 功耗最大值（接收器） |
5 W |
| 功耗最大值（发射器） |
3.5 W |
| 输入电流 |
1.2 A |
| 工作电压 |
48 V |

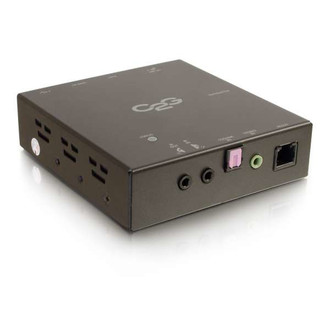

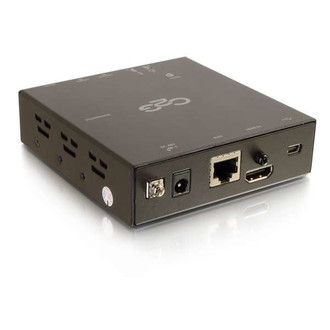

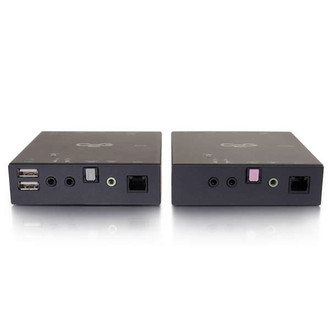

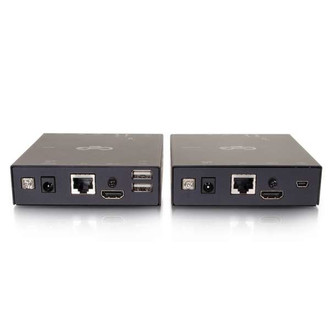

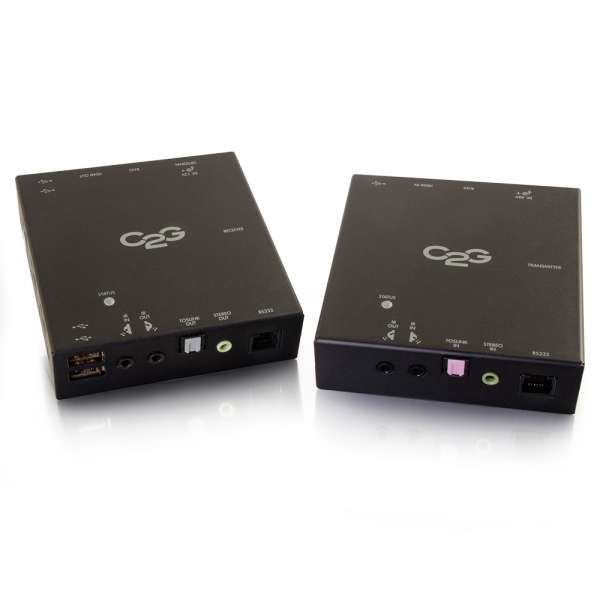

HDBaseT HDMI + USB Over Cat5 Extender
This HDBaseT HDMI + USB over cat5 extender is an ideal solution to deliver audio, video and USB signals from a computer or media player to an interactive whiteboard, touch screen, digital signage, or other interactive displays.
Simply connect with an audience
Target customers with an interactive 4K touchscreen display or engage students with an interactive whiteboard. This powerful system offers USB control of interactive displays while delivering 4K video and all major digital audio formats through HDMI, providing a dynamic experience and truly connecting with any audience.
Going the distance
Connecting with an audience is one thing, but delivering the content and control from a distance is more complex. This Kit removes the complexity of transmitting both A/V content and USB control to touch screens or from conference camera systems. This straightforward solution allows the content and control to be delivered up to 100 meters uncompressed, which enables installation options far beyond the length limitations of standard USB or HDMI cabling.
Remote operation
The HDBaseT HDMI + USB over Cat5 extender functions as an interface point for remote terminals, which provides a single simple solution to control remote devices . With 4K HDMI audio/video output and 4 USB ports this kit allows for USB devices like a touch screen, conference camera, mouse, or keyboard next to an HDMI display to be installed in a remote location. This setup provides remote control and access of a computer or other source device installed in a secure location.
Straightforward install and setup
Save time and money with an effortless install. Simply run two solid conductor Cat5e or Cat6 cables up to 100 meters (328 feet) between the transmitter at the source and the receiver at the display, connect all applicable devices, connect the power adapter and turn power on for all devices. There are no drivers to install. This plug and play solution passes EDID and HDCP, and supports all USB 2.0 functionality ensuring quick install and a setup with no configuration.
Extended control
This HDBaseT HDMI+ USB over Cat5 extender system also extends IR and Serial control up to 100 meters (328 feet). Control peripheral devices like a 4K display, projector, Blu-ray player or other IR or serial controlled devices using a standard remote or a serial terminal.
- Extend high speed HDMI and USB signal from a media player or computer to a touch screen or interactive display up to 100 meters (328 feet)
- Fully compliant with HDBaseT 2.0
- Extends HDMI audio/video at 4K resolution
- Extends USB 2.0, IR signal, and serial control communication and features
- Supports EDID pass-through and HDCP 2.2
