技术细节
| 可支持的电缆类型 |
Cat5e, Cat6 |
| 最大传输距离 |
91.4 m |
| 类型 |
AV receiver |
| 音频系统 |
stereo |
端口 & 界面
| RJ-45输入端口 |
1 |
| VGA（D-SUB）输出端口 |
1 |
| 音频（左、右声道）输出 |
1 |
| 复合视频输出 |
1 |
| DC-IN插口 |
Y |
| RJ-45输出端口 |
1 |

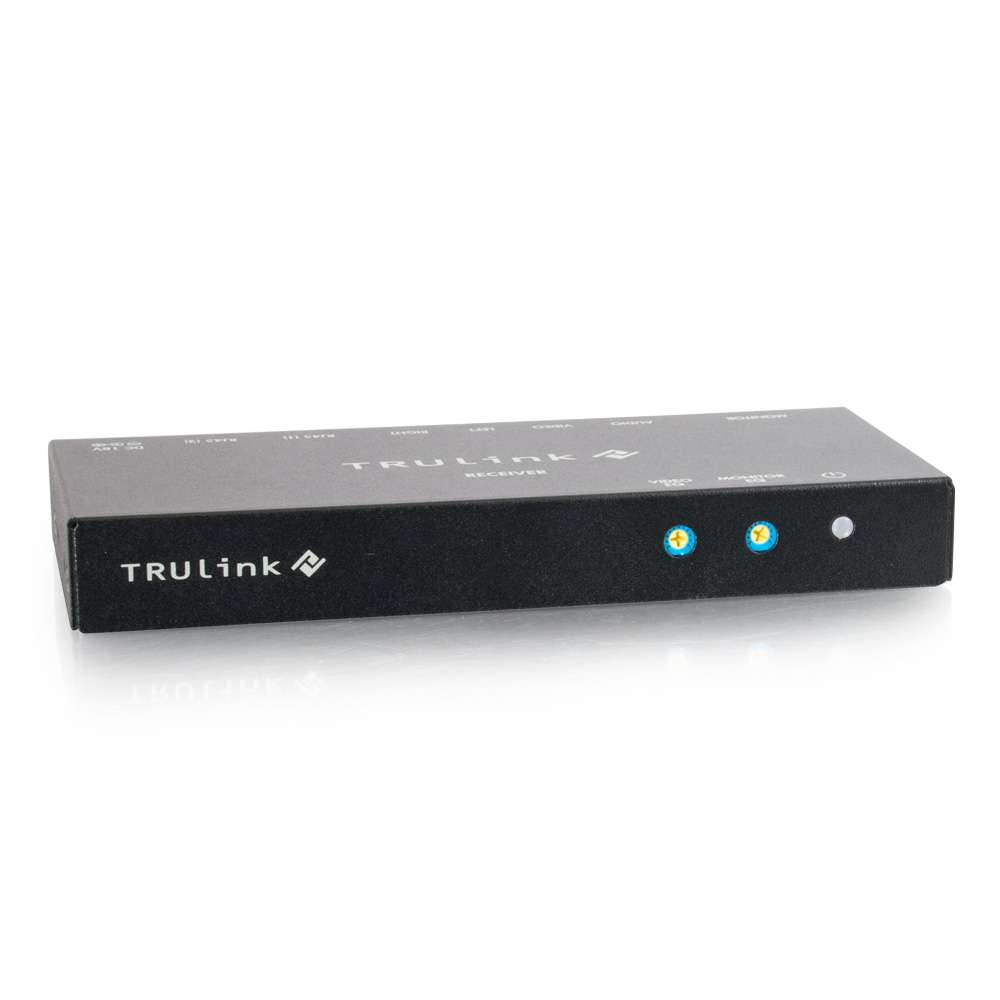

VGA/3.5mm Audio/Composite/Audio over Cat5 Box Receiver, 300ft Max, 1920x1200
Extend a VGA, Stereo Audio, Composite Video + Audio up to 300ft at a 1920x1200 video resolution
The TruLink VGA+3.5mm+Composite+Audio over Cat5 receiver allows for the extension of VGA video, Stereo Audio, Composite Video and Audio signals over two Cat5/Cat5e/Cat6 unshielded twisted pair cables up to 300ft. VGA video is supported at up to a 1920x1200 or 1920x1080 video resolution, while Composite Video is supported at a 480i video resolution. The 3.5mm port supports Stereo Audio, while the two RCA Audio inputs of the transmitter accept a Stereo Audio input, mix the two channels of audio into a single signal which is sent to this receiver then duplicated so that both channels of audio are sent to the white and to the red RCA output ports. This solution is compatible with any operating system and is truly plug and play with no drivers or software required. The transmitter and receiver come in either wall plate or box form factors and are interoperable allowing you to choose the form factors that are best suited for the application. In addition, this solution utilizes TruChoice power providing the flexibility to power at either the transmitter or receiver end.
TruPair technology ensures compatibility with any monitor. Built-In power surge protection and high ground loop immunity ensure high performance signal extension.
