Cables Direct SATA2-011

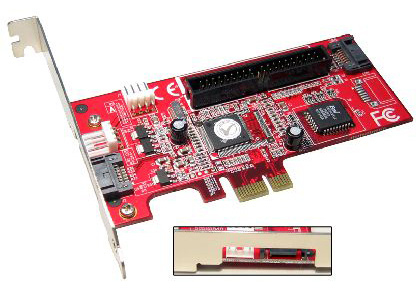

PCI-e Card, 2 x SATA Internal/External, IDE The SATA2-011 is a SATA II PCI Express card provides two SATA II ports and one IDE/PATA port. The SATA2-011 fits in the PCI-e slot (36pin) providing one external and one internal SATA II, one internal IDE slot.

- Supports 3.0Gbps SATA II interface
- Supports two independent SATA II channels, separate logic and FIFO
- Supports NCQ on SATA II ports
- Supports Hot plugging on SATA II ports
- Supports SATA II Gen2m and Gen2i external SATA
- Supports UDMA6 transfer mode on IDE port
- Supports transfer rate of 133MB/s with IDE (Ultra ATAII)
- Supports up to 4 storage devices
- Supports Raid 0, 1, 0+1 and JBOD functions
- Supports PCI Express 1-Lane 2.5Gbps interface (PCI-e x1/36pin)
