超低音音箱
| 超重低音扬声器类型 |
Active subwoofer |
| 超重低音炮混响频率 |
80 - 140 Hz |
| 超重低音炮驱动器数量 |
1 |
| 超重低音频率范围 |
33 - 140 Hz |
| 低音调整 |
Y |
| 超重低音功率有效值 |
120 W |
卫星音箱
| 卫星扬声器混响频率 |
5000 Hz |
| 卫星音箱低音单元数量 |
1 |
| 壁挂式卫星音箱 |
Y |
| 卫星扬声器频率范围 |
120 - 25000 Hz |
| 卫星功率有效值 |
200 W |
| 卫星音箱数量 |
2 |
| 卫星音箱类型 |
2-way |
| 卫星音箱高音扬声器数量 |
1 |
重量和尺寸
| 前扬声器重量 |
800 g |
| 中置扬声器尺寸（宽x深x高） |
196 x 106 x 89 mm |
| 超重低音扬声器尺寸（宽x深x高） |
240 x 420 x 410 mm |
| 超重低音炮重量 |
9800 g |
| 中央扬声器重量 |
1400 g |
| 卫星扬声器重量 |
800 g |
| 卫星音箱尺寸（宽x深x高） |
89 x 106 x 116 mm |
| 前置扬声器尺寸（宽 x 深 x 高） |
89 x 106 x 116 mm |
中置扬声器
| 中置扬声器低音扬声器数量 |
2 |
| 中置扬声器高音扬声器数量 |
1 |
| 中置扬声器壁挂式 |
Y |
| 中央扬声器混响频率 |
5000 Hz |
| 中心扬声器频率范围 |
120 - 25000 Hz |
| 中央扬声器电源 |
100 W |
| 中置扬声器类型 |
2-way |
前置扬声器
| 前置扬声器壁挂式 |
Y |
| 前置扬声器分频 |
5000 Hz |
| 前置音箱RMS功率 |
200 W |
| 前置扬声器类型 |
2-way |
| 前置扬声器的频率范围 |
120 - 25000 Hz |
技术细节
| 超重低音扬声器高度 |
410 mm |
| 超重低音扬声器厚度 |
420 mm |
| 超重低音扬声器宽度 |
240 mm |

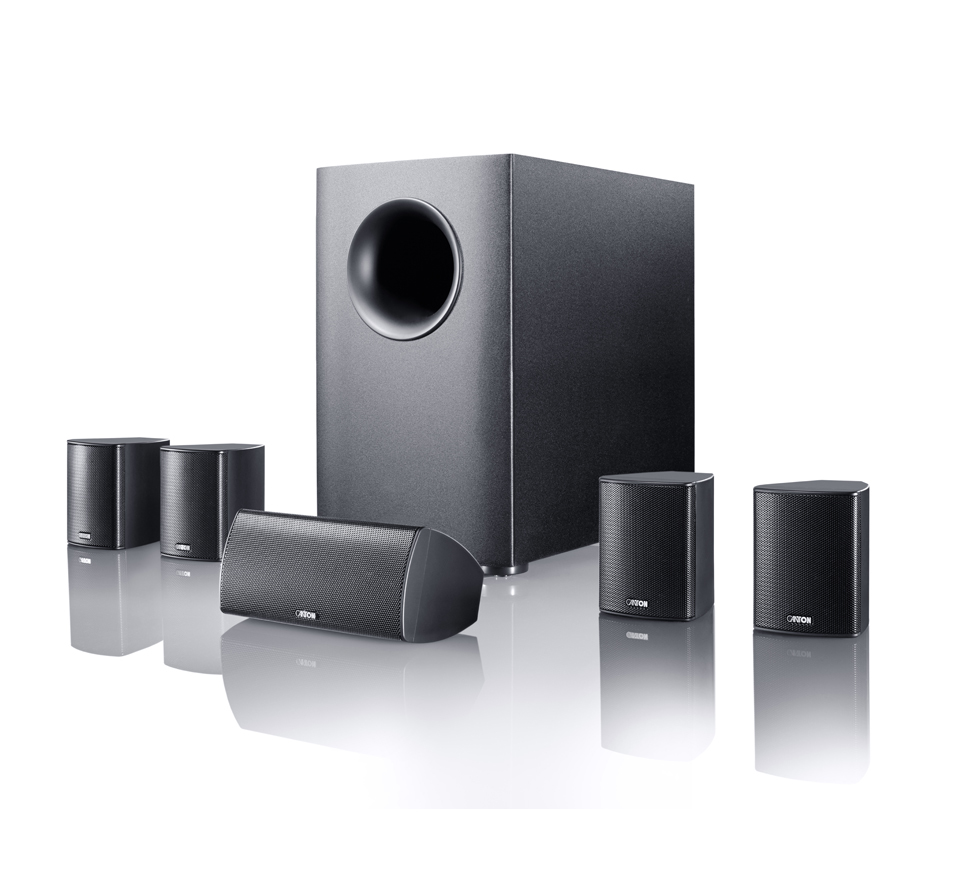

Movie 135 - 5.1 Home-Cinema-System with active subwoofer system, 4/8 Ω, Black
<b>5.1 Surround-Systems</b>
Those who wish to turntheir living rooms intohome cinemas will alsocontinue to rely on classic 5.1 surround sound systems. The perfectly harmonized components and sophisticated technology of our Movie Systems ensure intense effects, rich bass sounds, clear dialog and thus the consummate home cinema experience.
<b>Large center loudspeakers</b>
The main characters of every home cinema system are the center loudspeakers. They convey as much as 70% of the film and music information, and guarantee an optimal sound experience and outstanding speech intelligibility all around the room through a wide dispersion angle.
<b>Powerful active subwoofers</b>
The generously-sized subwoofers with powerful digital amplifiers and long excursion loudspeakers systems convey emotion into our Movie Systems and guarantee a solid bass tone foundation. Thanks to its various set-up possibilities, they can be perfectly adjusted to spatial conditions and personal listening preferences.
<b>Front and rear loudspeakers</b>
Our front loudspeakers are available in a columnor compact satellite design, turning the room into a stage, and guarantee a wide base of sound. The satellite rear loudspeakers give the sound spatial depth and guarantee impressive effects.
