能量控制
| 输入工作电压（最大值） |
147 V |
| 输入工作电压（最小值） |
90 V |
| 电源输入频率 |
60 Hz |
| 能量波动功率 |
506 J |
| 输出功率（瓦特－安培） |
900 VA |
| 输出工作电压（最小值） |
120 V |
| 输出工作电压（最大值） |
120 V |
| 输出功率 |
540 W |
端口 & 界面
| 调制解调器 (RJ-11)接口 |
2 |
| 电源插头 |
NEMA 5-15R |
| 交流电（AC）插座数量 |
6 |
电池
| 电池充电时间 |
6 h |
| 半载典型备用时间 |
8 min |
| 全载典型备用时间 |
3.5 min |
| 支持的的电池数量 |
1 |

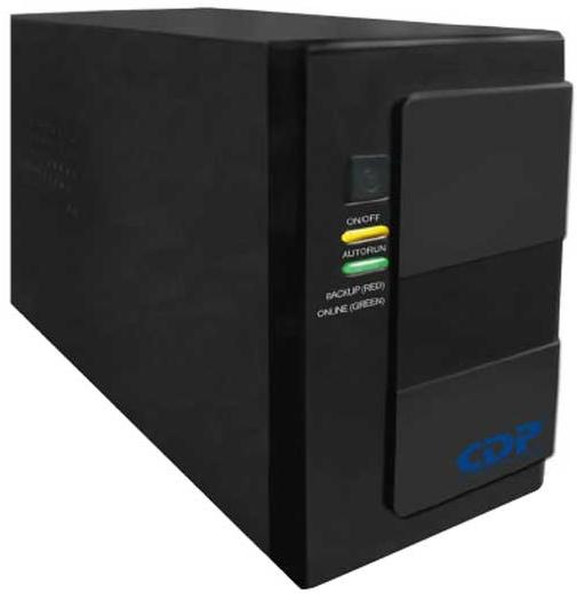

G-UPR 906 - 906VA, 540W, 6x Nema 5-15, 506J, 2x RJ11/RJ45, 2.8kg, Black
G-UPR is a line interactive UPS with Energy Saving Technology. Eliminates charges “ghost” of equipment when they don´t need energy. All models, 500VA, 750VA and 900VA have 6 shots, 3 green (ECO), 2 for router and modem (black) and 1 Bypass (yellow). The factory default programmed environmental function but has selector switches to normal function.
Controlled by CPU, calculates the demand for maximum use of the reserve batteries without damaging them and extend equipment life.
Green Mode: When you plug the UPS is automatically activated, the green LED flashes. In this mode, the UPS is in this mode, ECO (green) outlets haven´t energy. In case of power failure, only have backup black outlets.
ECO Mode: Just hold the power button for 3 seconds (steady green LED), will energize ECO outlets. It is recommended to connect these CDP, Monitor, Speakers, etc. So that by turning off the CPU within a minute the UPS automatically shuts off avoids consumption by Standby. In the event of a power failure the UPS will provide battery backup to all yellow outlets (Bypass) and to return to service must press the power button for 3 seconds to activate again.
Autorun mode: Green and yellow LED on, it all takes are energized, but the ECO mode is disabled and if any peripheral is connected during CPU shutdown, these will be turned on (no power saving). Also, after a power outage the UPS will star automatically.
