安装
| 安装界面相容性(最大) |
400 x 400 mm |
| 安装接口兼容性(最小) |
50 x 50 mm |
| 支持的显示器数量 |
1 |
| 最大承重量(最大载重能力) |
29.5 kg |

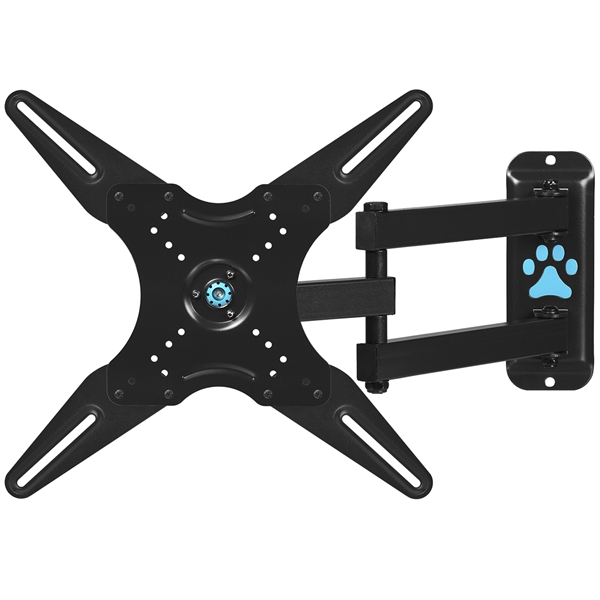

58.42 cm (23 ") - 55" LED LCD TV, VESA, 65lbs max
This ballhead mount fits the majority of displays in the 23-55" size range. Specifically, it fits VESA 50 - 400 hole patterns and TVs weighing up to 65lbs. If you are unfamiliar with VESA patterns, these are square or rectangular patterns between 2 and 8 inches per side. This mount provides 20" of extension, 180 degrees of rotation, +/- 15 degrees of tilt, 360 degrees of rotation adjustment, and collapses to 2.5" from the wall. The load bearing portions of the mount are constructed from High Grade Steel providing a sturdy and reliable mount. The package includes the mount, manual, all necessary installation hardware, and a 6" three-axis magnetic bubble level.
